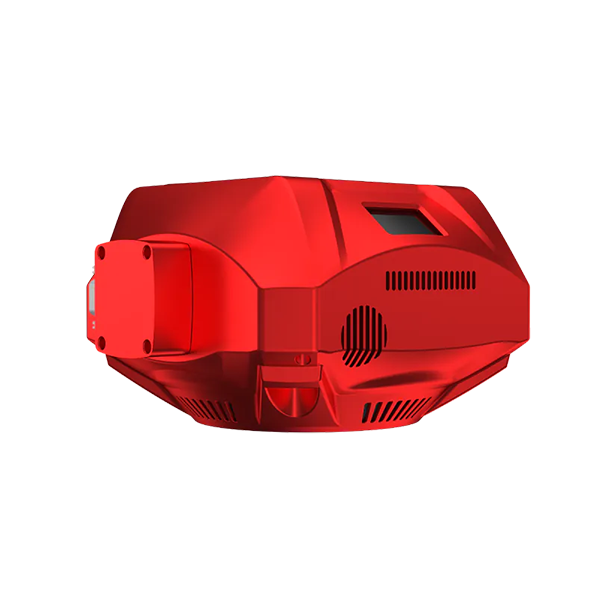

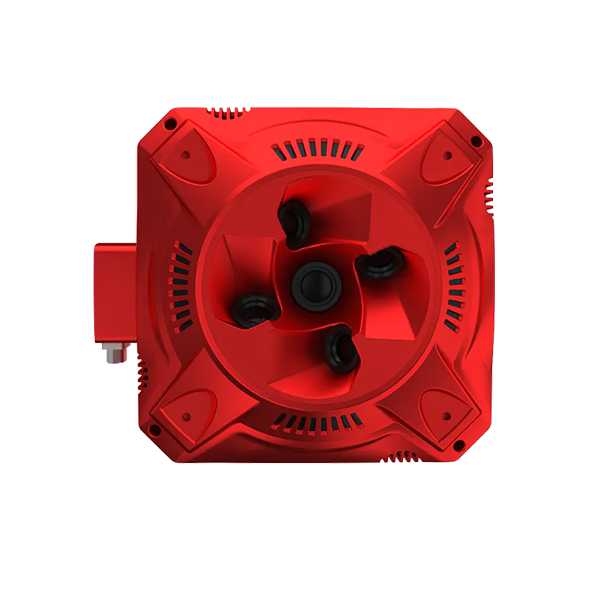

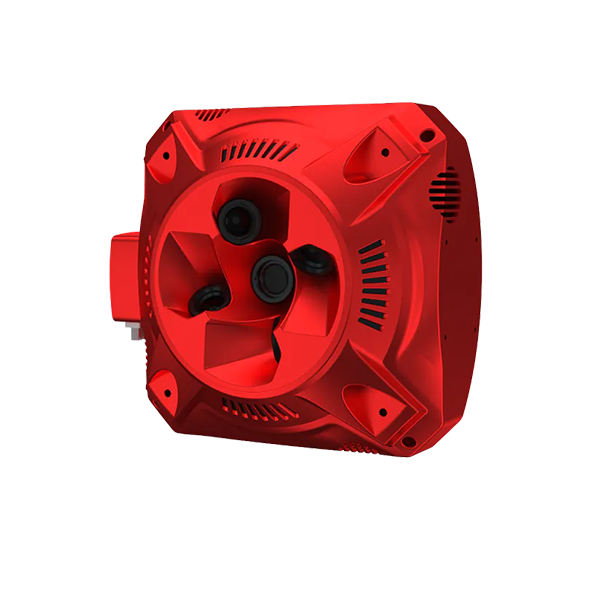

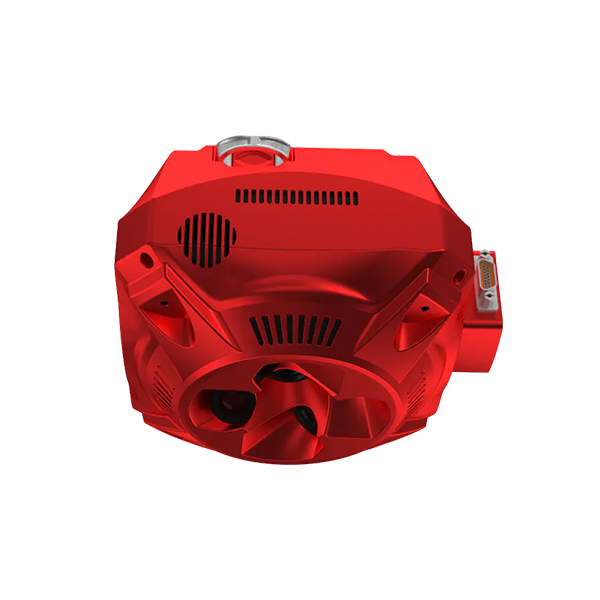

Share PSDK 102S V3
5 Lens Oblique Camera with 3-Axis Stabilized Gimbal

Key Features

·         3-axis stabilized gimbal,

·         guarantee the stability of the camera

·         Support modifying ISO, white balance, color mode,

·         shutter speed and other parameters by DJI Pilot

·         Instantly write POS and camera information into photos

·         Image free control

Technologies Inside

·         S-OPG Mapping Image Control System

·         Time Sync 2.0-time synchronization algorithm

Application

·         Macro-photogrammetry

·         Monomer modeling

·         High-rise scenarios

·         Terrain-following scenarios

Not Only Basically Enhancing Stability

But Also Support Muti-Angle Picturing

The intelligent 3-axis gimbal can guarantee the stability of camera, realizing the high overlap between original data and the calculated aerial triangulation. The pitching angle can be freely adjusted within 180 degrees, enables users to view more details of oblique photography

Freely Adjust Camera Parameters

Over 125 Megapixel Image Sensors

Self-developed S-OPG mapping image control system enable users to freely adjust camera parameters according to different weather and light, extending the working time to 9 hours The camera is embedded with five 25.16-megapixel image control sensors, showing excellent performance from pixel integration to image quality.

Super Durable S-GS Global Shutter

Prolonging Working Life by 3 Time

The self-developed S-GS global shutter can stabilize image at high-speed flies clearly, improving capturing efficiency and quality. KIMOTO high speed shading blade with double structure is integrated to reduce the friction coefficient, prolonging the working life by 3 times and shortening the shooting interval to 0.5s/time.

Excellent Optical Quality

Multi-layer enhanced nano coating and LD low-dispersion lens are used to correct aberration to achieve ultra-high resolution. The front lens is coated with fluor in compound, which is waterproof, oil-proof, stain-proof, protecting the lens module effectively.

Abundant and Clear Screen Display

Visualized Camera Information

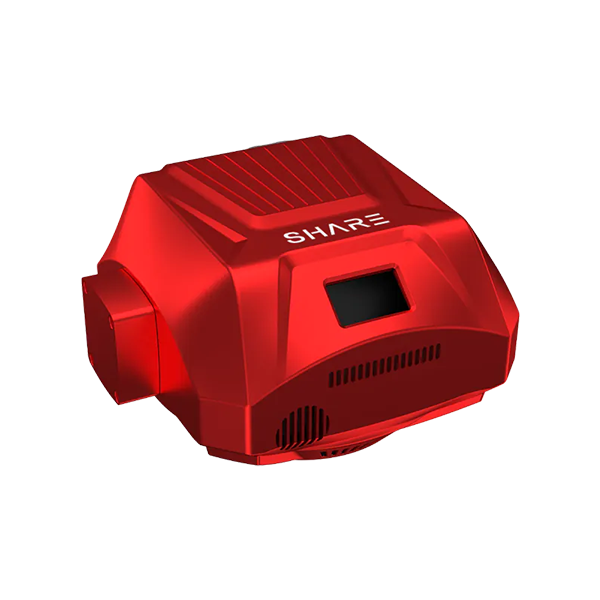

The camera is equipped with a new upgraded OLED HD color screen, which can display the camera status and parameter settings in a real-time way, including body temperature, RAM, shutter life, and other useful information. It is intuitive and easy for user operation.

Instantly Triggering and Writing POS into Photos

Image Free Control

Time Sync 2.0 synchronization algorithm is incorporated deeply, synchronizing time at microsecond-level, recording five-view centimeter-level position information independently and accurately, and writing POS data into photos instantly . Highly mature image free control technology is an individual operation new weapon in Aerial surveying.

Highly Compatibility with Diverse Load

Being Applicable For Mainstream UAV Mounting Platform

12-50V mounting platform power supply can achieve synchronous operation in the voltage tolerance range. The gimbal can be quickly disassembled, with different mounting interfaces, letting camera be applied to other VTOL UAVs and Fixed-wing UAVs.

Terrain-Following Flight

Unlocking a New Attitude of Oblique Photography

The three-axis stabilized gimbal can adjust the camera attitude based on the terrain to ensure that the camera shooting angle is always vertical to the ground to give full play to the extreme performance of UAV and camera and improve the operation efficiency.

Macro-photogrammetry

Providing a Solution of Elevation and Slope Fine Modeling

Thanks to the self-developed S-ML mapping lens, the minimum top-down view focus distance can reach 10 meters, by combining adjustable gimbal, the camera can realize 2mm ultra-high resolution 3d data acquisition for high-precision tasks in elevation or inclined surfaces within the focus range with fine texture and structural characteristics.
