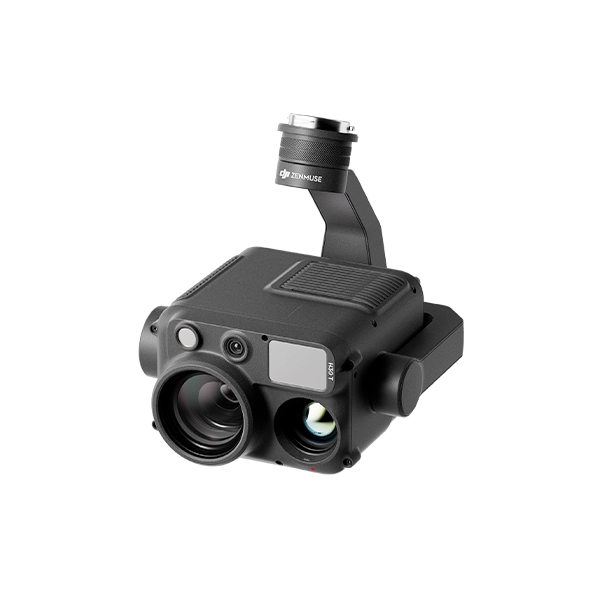

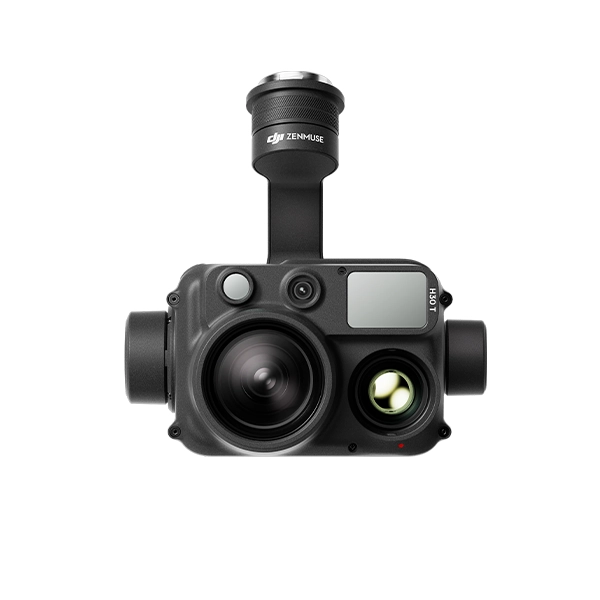

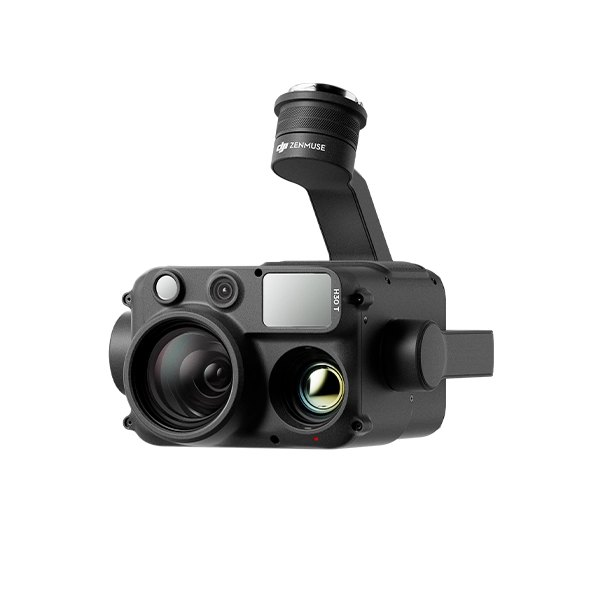

DJI Zenmuse H30T

(0 reviews)

Inhouse product

Enquire Now

Share

Enquire Now

DJI ZENMUSE H30 Thermal

Unparalleled Vision, Day or Night

DJI Zenmuse H30T Payload is a latest addition of payload for DJI M350RTK which is capable to overcome many challenges compare its previous models. DJI Zenmuse H30T has become the best Hybrid sensor among its competitors. Zenmuse H30T comprised with 5 different modules which improves the image and video quality of the data taken during various operations. it comes with RGB, Thermal, Zoom, Laser range finder and an NIR Aux light sensors combing all these modules makes the Zenmuse H30T is the best payload for multiple industries like Oil and Gas, Construction, Public Safety, Inspections, Forestry management, Border patrol and many drone powered industrial applications

DJI Zenmuse H30T comes with a standalone night vision camera to enhance the night flight in publica safety operations, DJI Zenmuse H30T is compatible with DJI M350RTK , Zenmuse H30T can be combined with other payloads like spotlight , loud speakers etc. to get the best data during an operations

Versatile Performance,
Day and Night

1. Zoom Camera

- Up to 34× Optical Zoom‌ and 400× Digital Zoom

- 40MP 1/1.8-inch CMOS Sensor

- Video Resolution: Max 3840×2160@30fps

2. Wide-Angle Camera

- Equivalent Focal Length: 24mm, DFOV: 82.1°

- 48MP 1/1.3-inch CMOS Sensor

- Video Resolution: Max 3840×2160@30fps

3.Laser Range Finder

- Measurement Range: 3-3000 m

- Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m

4. Infrared Thermal Camera (H30T only)

- Equivalent Focal Length: 52mm, DFOV: 45.2°

- Uncooled VOx Microbolometer

- Photo Resolution: 1280×1024

- Video Resolution: 1280×1024@30fps

- Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

5. NIR Auxiliary Light

- Wavelength: 850 nm

- FOV: 4.6±0.6° (Round)

- Safety Rating: Class

  • Further and Clearer‌ Vision
  • Enhanced Night Vision
  • More Powerful Infrared Performance
  • Smarter Multi-Scenario Operations
  • Superior Environmental Adaptability
  • More Reliable Information Sync and Retention

Further and Clearer ‌Vision

  • Up to 34× Optical Zoom‌ and 400× Digital Zoom: The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.
  • More Stable Imagery from the Zoom Camera: With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.
  • Max 3000m Laser Range Finder: The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

Enhanced Night Vision

  • Supports Full-Color Night Vision: Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.
  • Supports Black and White Night Vision and NIR Illumination: In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.
  • 1280×1024 Infrared Resolution: The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.
  • High-Res Mode for Precise Observation: Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.
  • Visual and IR Cameras Simultaneous Zoom: The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.
  • Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F): With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.
  • Smart Capture for Improved Imaging: In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.
  • Electronic Dehazing: In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements


General

  • Product Name

  • Zenmuse H30 Series
  • Dimensions

  • 170×145×165 mm (L×W×H)
  • Weight

  • 920±5 g
  • Power

  • H30: 26 W
    H30T: 28 W
  • Ingress Protection Rating

  • IP54

    Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
  • Supported Aircraft

  • Matrice 300 RTK (requires DJI RC Plus)
    Matrice 350 RTK

Environment

  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature

  • -20° to 60° C (-4° to 140° F)

Gimbal

  • Stabilization System

  • 3-axis (tilt, roll, pan)
  • Angular Vibration Range

  • Hover: ±0.002°
    Flight: ±0.004°
  • Mounting

  • Detachable DJI SKYPORT
  • Mechanical Range

  • Tilt: -132.5° to +73°
    Roll: ±60°
    Pan: ±328°
    (Structural limit, not controllable range)
  • Controllable Range

  • Tilt: -120° to +60°
    Pan: ±320°
  • Operation Mode

  • Follow/Free/Re-center

Zoom Camera

  • Sensor

  • 1/1.8-inch CMOS, Effective Pixels: 40 MP
  • Lens

  • Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
    Aperture: f/1.6-f/5.2
    DFOV: 66.7°-2.9°
  • Focus Mode

  • MF, AFC, AFS
  • Exposure Mode

  • Manual, Auto
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot Metering, Average Metering
  • AE Lock

  • Supported
  • Electronic Shutter Speed

  • 1/8000-2 s
  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-819200
  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR
  • Max Photo Size

  • 7328×5496, 3664×2748
  • Photo Format

  • JPG

Wide-Angle Camera

  • Sensor

  • 1/1.3-inch CMOS, Effective Pixels: 48 MP
  • Lens

  • Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
    Aperture: f/1.7
    DFOV: 82.1°
  • Focus Mode

  • MF, AFC, AFS
  • Exposure Mode

  • Manual, Auto
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot Metering, Average Metering
  • AE Lock

  • Supported
  • Electronic Shutter Speed

  • 1/8000-2 s
  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-409600
  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR
  • Max Photo Size

  • 8064×6048, 4032×3024
  • Photo Format

  • JPG

Infrared Thermal Camera (H30T)

  • Thermal Imager

  • Uncooled VOx Microbolometer
  • Lens

  • Focal Length: 24 mm (equivalent focal length: 52 mm)
    Aperture: f/0.95
    DFOV: 45.2°
  • Digital Zoom Equivalent

  • 32×
  • Video Resolution

  • 1280×1024@30fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H264, H265
    CBR, VBR
  • Photo Resolution

  • 1280×1024
  • Photo Format

  • R-JPEG
  • Pixel Pitch

  • 12 μm
  • Spectral Band

  • 8-14 μm
  • Noise Equivalent Temperature Difference (NETD)

  • ≤ 50 mk@f/1.0
  • Temperature Measurement Method

  • Spot Measurement, Area Measurement, Center Point Temperature Measurement
  • Temperature Measurement Range

  • High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
    Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
  • Temperature Alert

  • Supported
  • Sun Burn Protection

  • Supported
  • FFC

  • Auto, Manual
  • Palette

  • White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

  • Wavelength

  • 905 nm
  • Measurement Range

  • 3-3000 m
    Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*

    The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
    * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
  • Measurement Accuracy

  • ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
    ‌> 500 m: ±1.0 m
  • Laser Spot Size

  • @100 m: approx. 50×450 mm
    @1000 m: approx. 450×4500 mm
  • Safety Regulation Level

  • Class 1
  • Accessible Emission Limit (AEL)

  • 260 nJ
  • Reference Aperture

  • 18 mm
  • Max Laser Pulse Emission Power Within 5 Nanoseconds

  • 52 W

NIR Auxiliary Light

  • Wavelength

  • 850 nm
  • FOV

  • 4.6±0.6° (Round)
  • Safety Regulation Level

  • Class 1
  • Illumination Range

  • @100 m: Approx. 8m diameter circle

Special Features

  • Hybrid Optical Zoom

  • 34×
  • Max Zoom

  • 400×
  • Link Zoom

  • Supported
  • Click to Aim

  • Supported
  • High-Res Grid Photo

  • Supported
  • Night Scene

  • Supported
  • Timestamp

  • Supported
  • Smart Capture

  • Supported
  • Video Pre-Recording

  • Supported
  • UHR Infrared Image

  • Supported

Data Storage

  • Supported microSD Cards

  • U3/Class10/V30 or above is required, or use a memory card from the recommended list.
  • Supported File System

  • exFAT
  • Recommended microSD Cards

  • SanDisk Extreme Pro V30 A1 32GB microSDHC
    Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
    Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

    Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.

Post-Processing Software

  • Mapping Software

  • DJI Terra, DJI FlightHub 2
  • Infrared Analysis Software

  • DJI Thermal Analysis Tool 3

1x Zenmuse H30

1x Lens Cap

1x microSD Card (64GB)

1x Storage Case

1x Lens Cleaning Cloth
