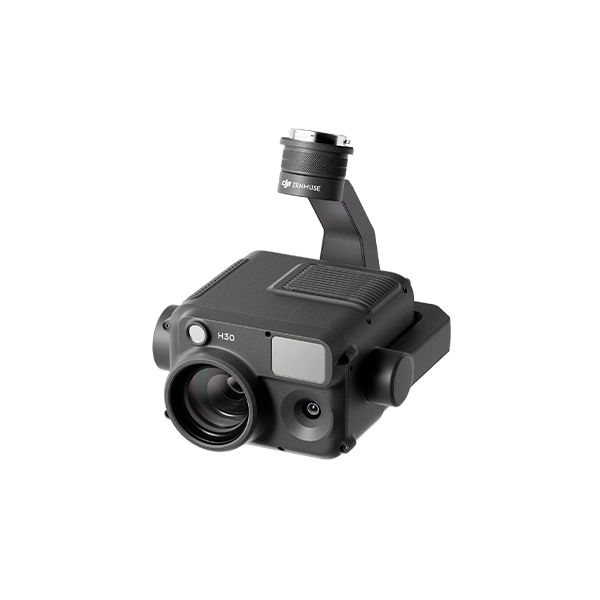

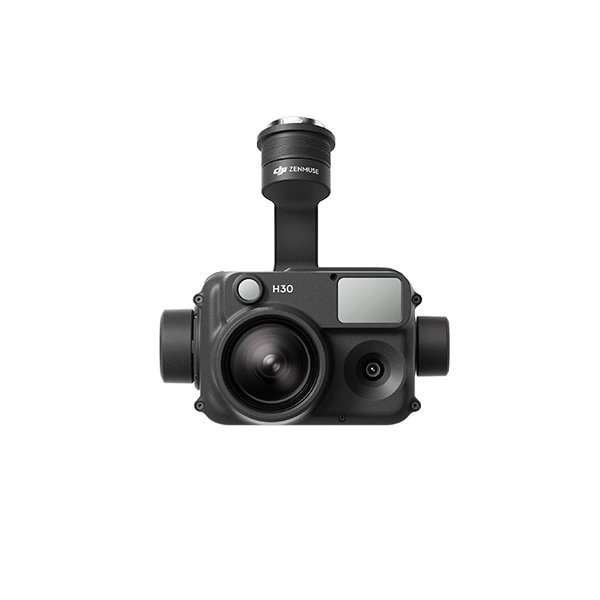

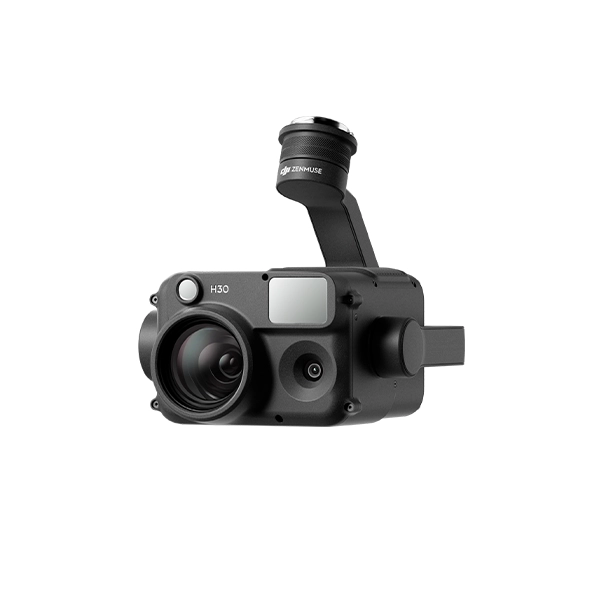

DJI ZENMUSE H30 SERIES

Unparalleled Vision, Day or Night

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Versatile Performance,
Day and Night

1. Zoom Camera

- Up to 34× Optical Zoom‌ and 400× Digital Zoom

- 40MP 1/1.8-inch CMOS Sensor

- Video Resolution: Max 3840×2160@30fps

2. Wide-Angle Camera

- Equivalent Focal Length: 24mm, DFOV: 82.1°

- 48MP 1/1.3-inch CMOS Sensor

- Video Resolution: Max 3840×2160@30fps

3.Laser Range Finder

- Measurement Range: 3-3000 m

- Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m

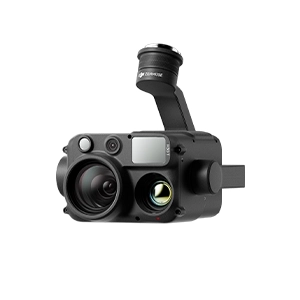

4. Infrared Thermal Camera (H30T only)

- Equivalent Focal Length: 52mm, DFOV: 45.2°

- Uncooled VOx Microbolometer

- Photo Resolution: 1280×1024

- Video Resolution: 1280×1024@30fps

- Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

5. NIR Auxiliary Light

- Wavelength: 850 nm

- FOV: 4.6±0.6° (Round)

- Safety Rating: Class

• Further and Clearer‌ Vision
• Enhanced Night Vision
• More Powerful Infrared Performance
• Smarter Multi-Scenario Operations
• Superior Environmental Adaptability
• More Reliable Information Sync and Retention

Further and Clearer ‌Vision

• Up to 34× Optical Zoom‌ and 400× Digital Zoom: The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.
• More Stable Imagery from the Zoom Camera: With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.
• Max 3000m Laser Range Finder: The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

• Supports Full-Color Night Vision: Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

• Supports Black and White Night Vision and NIR Illumination: In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.

• 1280×1024 Infrared Resolution: The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.

• High-Res Mode for Precise Observation: Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

• Visual and IR Cameras Simultaneous Zoom: The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

• Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F): With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

Smarter Multi-Scenario Operations

• Smart Capture for Improved Imaging: In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.

• Electronic Dehazing: In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements

Superior Environmental Adaptability

• IP54Ingress Protection: With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.
• -20° to 50° C (-4° to 122° F) Operating Temperature: The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.

More Reliable Information Sync and Retention

• Supports Pre-Recording: All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.
• Media and Transmission Encryption with One-click Log Clearance: The Security Code function allows for the encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. Additionally, it supports one-click log clearance to prevent information leaks
• Cloud Information Sync for Collaborative Ground and Air Operations: Operators can check live views from the Zenmuse H30 Series through the cloud platform on DJI FlightHub 2 to stay up to date with on-site dynamics. This enables rapid remote command and facilitates coordinated air-to-ground operations.

Application Scenarios

With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a range of industries, such as public safety, electricity, oil and gas, water conservation, and forestry.

Aerosmart UAV is the Official dealer for DJI Enterprise. For more information or to schedule a demo of the DJI Zenmuse H30 Series, please contact Aerosmart at +971501576093 or email sales@aerosmart.ae.
