DJI ZENMUSE P1

Efficiency through Flexible Full-frame Photogrammetry

DJI Zenmuse P1 has made to create the efficiency through flexible full frame photogrammetry. DJI Zenmuse P1 comes with an interchangeable Lense like twenty-four mm, thirty-five mm, and fifty mm with DJI DL mounts. DJI Zenmuse P1 has a global mechanical shutter with a shutter speed of 1/2000 seconds. DJI Zenmuse P1 integrates a forty-five-megapixel sensor integrate a full frame sensor with interchangeable lens on a three-axis gimbal DJI Zenmuse P1 can achieve better accuracy without GCPs DJI Zenmuse P1 can covered high efficiency 3km2 covered in a single flight DJI Zenmuse P1 comes with a 45 MP full frame sensor. DJI Zenmuse P1 can easily create 2D/3D, and detailed models with its versatile integrated 3 Aix gimbal thus makes the DJI Zenmuse P1 is the best choice among the mapping and surveying industries to create better 2D/3D modelling.

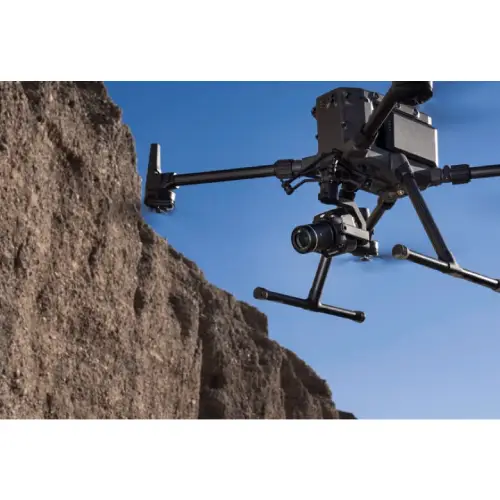

DJI Zenmuse P1 is compatible with both Matrice 300RTK and Matrice 350RTK DJI Zenmuse P1 has the smart data management system which helps the industry to streamline the data in a better way.  with the smart data management system Mission result files are saved automatically with the mission's name and details. DJI Zenmuse P1 can create a centralized storage location for GNSS data, images, timestamps etc.

DJI Zenmuse P1 helps to create 2D ortho mosaic mission, DJI Zenmuse P1 can generate Ortho mosaics without GCPs using the P1 and that's perfect for medium to large operation scenarios. DJI Zenmuse P1 can create better 3D oblique mission effortlessly acquire oblique images from multiple angles from different angles that will be meeting all requirements from different industries. DJI Zenmuse P1 used in detailed modelling mission because it can capture better-quality high-resolution images of slanted areas from a far distance and which is in safe mode that can create fine textures, structures, for an in detailed re construction model, geological surveys, etc.

The New Benchmark for Aerial Surveying

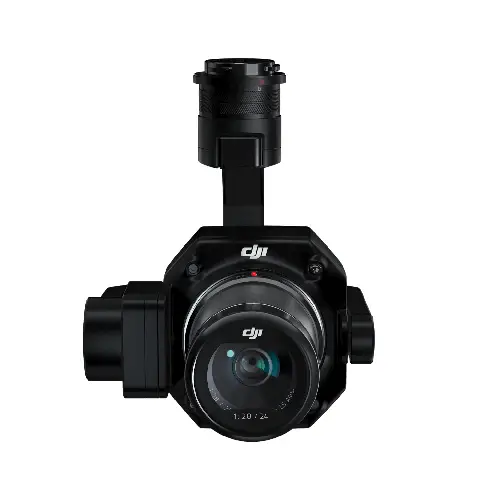

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

• Accuracy without GCPs 3 cm horizontally / 5 cm vertically
• High Efficiency 3 km2 covered in a single flight [2]
• 45 MP Full-frame Sensor
• 3-axis Stabilized Gimbal Smart Oblique Capture
• Global Mechanical Shutter Shutter Speed 1/2000 Seconds
• TimeSync 2.0 - synchronization at the microsecond level

Your Go-to Tool for Aerial Photogrammetry

• Extraordinary Efficiency: The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km in a single flight.
• Remarkable Accuracy: Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with real-time position and orientation compensation technology.
• Robust Versatility: Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All
Full-frame Camera

• 45MP Full-frame Sensor
• 4.4μm Pixel Size
• Low-noise, high-sensitivity imaging extends daily operational time
• Take a photo every 0.7 seconds during the flight
• TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Flexibility to capture it all
Multiple Fixed-focus lens options

• Global mechanical shutter, shutter speed 1/2000 seconds
• spends the median exposure pulse in microseconds
• supports 24/30/50mm lenses with Dji DL mounts

Work Smart, Work Fast
Smart Oblique Capture

Cover 7.5 km in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post-processing by 20% to 50%.

Smart Data Management

Your mission data management - streamlined.

• Mission result files are automatically associated with the Mission Name and Mission Time.
• A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.
• The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

Fieldwork Report

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

A Mission Mode for Any Scenario

• 2D Orthomosaic Mission
• 3D Oblique Mission
• Detailed Modeling Mission
• Real-time Mapping Mission

Aero Smart is DJI authorized distributor. Contact Aero Smart Dubai for DJI Zenmuse P1
