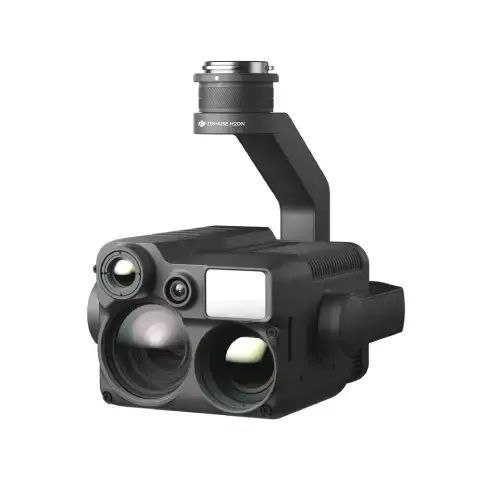

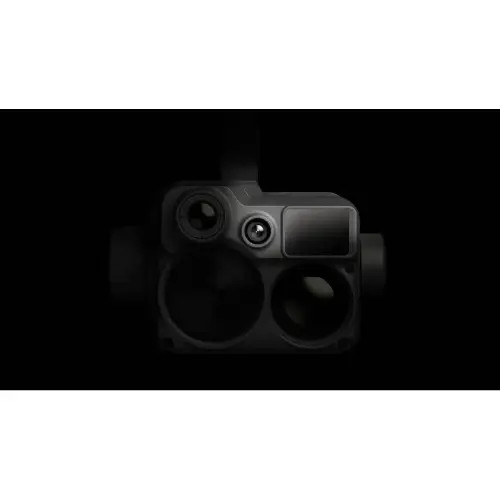

Zenmuse H20N Product Specifications

General Specifications:

• Product Name:
  • Zenmuse H20N
• Dimensions:
  • 178x135x161 mm
• Weight:
  • 878±5 g
• Protection Rating:
  • IP44
• Laser Safety:
  • Class 1M (IEC 60825-1:2014)
• Supported Aircraft:
  • Matrice 300 RTK

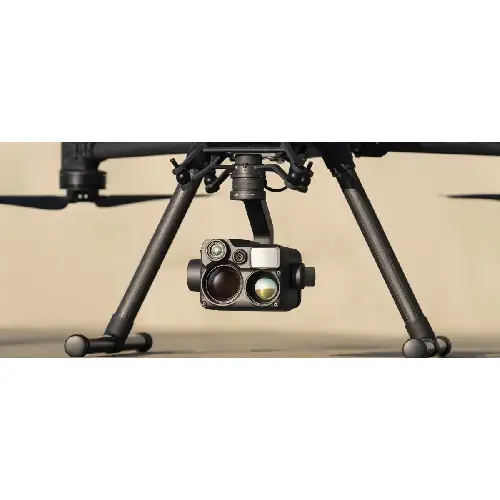

Gimbal Specifications:

• Angular Vibration Range:
  • ±0.01°
• Mount:
  • Detachable
• Controllable Range:
  • Pan: ±320°
  • Tilt: -120° to +60°
• Mechanical Range:
  • Pan: ±330°
  • Tilt: -132.5° to +68°
  • Roll: -90° to +60°
• Max Control Speed:
  • Pan: 90°/s
  • Tilt: 90°/s

Zoom Camera Specifications:

• Sensor:
  • 1/1.8" CMOS; Effective Pixels: 4M
• Lens:
  • Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
  • Aperture: f/1.6-f/11
  • Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
• Focus Mode:
  • MF/AF-C/AF-S
• Exposure Mode:
  • Manual, Auto
• Exposure Compensation:
  • ±3.0 (1/3 increments)
• Metering Mode:
  • Spot Metering, Average Metering
• AE Lock:
  • Supported
• Electronic Shutter Speed:
  • Photo: 8-1/8000 s
  • Video: 1/30-1/8000 s
  • Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
  • Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
• ISO Range:
  • Video: 100-102400
  • Photo: 100-102400
• Video Resolution:
  • 2688×1512@30fps
  • 1920×1080@30fps
  • 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
  • 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
• Video Format:
  • MP4
• Video Caption:
  • Supported
• Max Image Size:
  • 2688×1512
• Photo Format:
  • JPEG

Wide Camera Specifications:

• Sensor:
  • 1/2.7" CMOS; Effective Pixels: 2M
• Lens:
  • DFOV: 73.6°
  • Focal Length: 4.5 mm (equivalent: approximately 29 mm)
  • Aperture: f/2.8
  • Focus: 1 m to ∞
• Exposure Mode:
  • Auto
• Exposure Compensation:
  • ±3.0 (1/3 increments)
• Metering Mode:
  • Spot Metering, Average Metering
• AE Lock:
  • Supported
• Electronic Shutter Speed:
  • Photo: 0.8-1/8000 s
  • Video: 1/30-1/8000 s
  • Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
  • Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
• ISO Range:
  • Video: 100-102400
  • Photo: 100-102400
• Video Resolution:
  • 1920×1080@30fps
  • 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
  • 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
• Video Format:
  • MP4
• Video Caption:
  • Supported
• Max Image Size:
  • 1920×1080
• Image Format:
  • JPEG

Tele Infrared Thermal Camera Specifications:

• Thermal Imager:
  • Uncooled VOx Microbolometer
• Lens:
  • DFOV: 12.5°
  • Focal Length: 44.5 mm (equivalent: approximately 196 mm)
  • Aperture: f/1.2
  • Focus: 45 m to ∞
• Equivalent Digital Zoom:
  • 16x, 32x
• Video Resolution:
  • 640×512@30fps
• Video Format:
  • MP4
• Image Resolution:
  • 640×512
• Image Format:
  • R-JPEG* (16 bit raw included)
• Pixel Pitch:
  • 12 μm
• Spectral Band:
  • 8-14 μm
• Noise Equivalent Temperature Difference (NETD):
  • ≤50 mK @ f/1.0
• Temperature Measurement Method:
  • Spot Meter, Area Measurement
• Scene Range:
  • -20° C to 150° C (High Gain)
  • 0° C to 500° C (Low Gain)
• Temperature Alert:
  • Supported
• FFC:
  • Auto/Manual
• Palette:
  • White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide Infrared Thermal Camera Specifications:

• Thermal Imager:
  • Uncooled VOx Microbolometer
• Lens:
  • DFOV: 45.5°
  • Focal Length: 12 mm (equivalent: approximately 53 mm)
  • Aperture: f/1.0
  • Focus: 5 m to ∞
• Equivalent Digital Zoom Rate:
  • 4x
• Video Resolution:
  • 640×512 @ 30 fps
• Video Format:
  • MP4
• Image Resolution:
  • 640×512
• Image Format:
  • R-JPEG (16 bit raw included)
• Pixel Pitch:
  • 12 μm
• Spectral Band:
  • 8-14 μm
• Noise Equivalent Temperature Difference (NETD):
  • ≤50 mK @ f/1.0
• Temperature Measurement Method:
  • Spot Meter, Area Measurement
• Scene Range:
  • -20° to 150° C (High Gain)
  • 0° to 500° C (Low Gain)
• Temperature Alert:
  • Supported
• FFC:
  • Auto/Manual
• Palette:
  • White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Range Finder Specifications:

• Wavelength:
  • 905 nm
• Maximum Power:
  • 3.5 mW
• Single Pulse Width:
  • 6 ns
• Measuring Accuracy:
  • ± (0.2 m + target distance x 0.15%)
• Measuring Range:
  • 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
• Safety Regulation Level:
  • Class 1M
• Accessible Emission Limit (AEL):
  • 304.8 nJ
• Reference Aperture:
  • 18mm length, 18mm width (20.3mm diameter if equivalent to circular)
• Max Laser Pulse Emission Power Within 5 Nanoseconds:
  • 60.96 W

Storage Specifications:

• Supported microSD Cards:
  • Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
• Supported File System:
  • exFAT

Environment Specifications:

• Operating Temperature:
  • -20° to 50° C (-4 to 122°F)
• Storage Temperature:
  • -20° to 60° C (-4 to 140°F)

1x Gimbal and Camera

1x SanDisk Extreme microSD Card 32GB

1x Storage Case

1x Lens Cleaning Cloth
