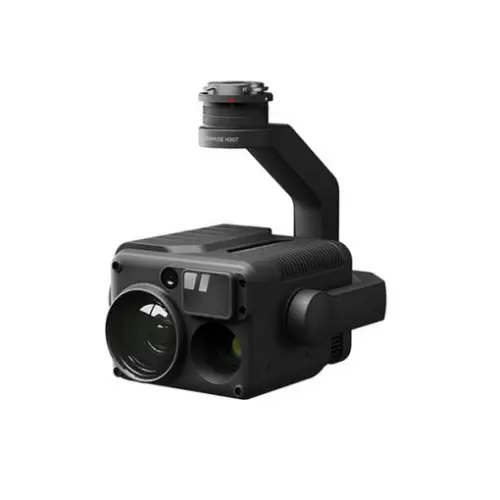

DJI Zenmuse H20T - Unleash the Power of One

“H” For Hybrid

The DJI Zenmuse H20T is a hybrid quad sensor from DJI enterprise family to enhance the operation in various industries such as publica safety operation, Oil and Gas inspections, Border patrolling, Fire and rescue operations etc. DJI Zenmuse H20T is compatible with DJI M350 RTK and DJI M300RTK. DJI Zenmuse H20T multi-sensor payloads bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution, Thanks to DJI Enterprise to bring such a great sensor to the market DJI Zenmuse H20T making easy for many industry operations.  DJI Zenmuse H20T comes with a 20MP zoom camera, 12 Megapixel wide camera and 640X512 px Thermal radiometric camera DJI Zenmuse H20T can zoom an object away from 12oo meters which bring the target very close to you it has a very powerful zoom camera 23X Hybrid Optical zoom and 200X max Zoom. DJI Zenmuse H20T has a wide camera with a focal length to capture everything around you. DJI Zenmuse H20T is equipped with a laser range finder to get a precise distance between the aircraft and the target for a great operational capability. – the Zenmuse H20 Series.

• 12 MP Wide Camera
• 82.9° DFOV
• 20 MP Zoom Camera
• 23× Hybrid Optical Zoom
• Radiometric Thermal Camera
• 640×512 px
• Laser RangeFinder
• 1200 m Max Range
• IP44 Rating
• -20°C to 50°C Operating Temperature
• Active Image Stabilization and EIS
• Night Scene Mode

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

H20T – Quad-Sensor Solution with DJI Zenmuse H20T

• 20 MP Zoom Camera
• 12 MP Wide Camera
• 1200 m LRF
• 640×512 px Radiometric Thermal Camera

Closing the Distance

Powerful Zoom Camera

• 23× Hybrid Optical Zoom, 200× Max Zoom
• 20 MP 1/1.7” CMOS Sensor
• Video Resolution: 4K/30fps

Everything in View

Wide Camera

• Equivalent Focal Length: 24mm, DFOV: 82.9°
• 12 MP 1/2.3” CMOS Sensor

Precise Distance Data

Laser Rangefinder

• Range: 3 m – 1200 m
• Accuracy: ± (0.2 m + D×0.15%)

See the Unseen

Radiometric Thermal Camera

• DFOV: 40.6°
• Resolution: 640×512, Frame Rate: 30fps
• Thermal Sensitivity: ≤ 50mk@f1.0 (NEDT)

The All-In-One

Multi-Sensor Payloads: See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface: A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Intelligent Ways to Collect Data

AI Spot-Check: Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo: Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint: A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track: Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Visualize Temperatures Immediately

Accurate Temperature Measurement: Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Spot Meter: Tap a point to get a real-time reading of the surface temperature.

Area Measurement: Select an area to view the lowest, highest, and average temperatures

Intelligent Features

Temp Alarm: Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms: Visualize a specific band of temperatures to find what is important.

Color Palettes: Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes: Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images: Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
