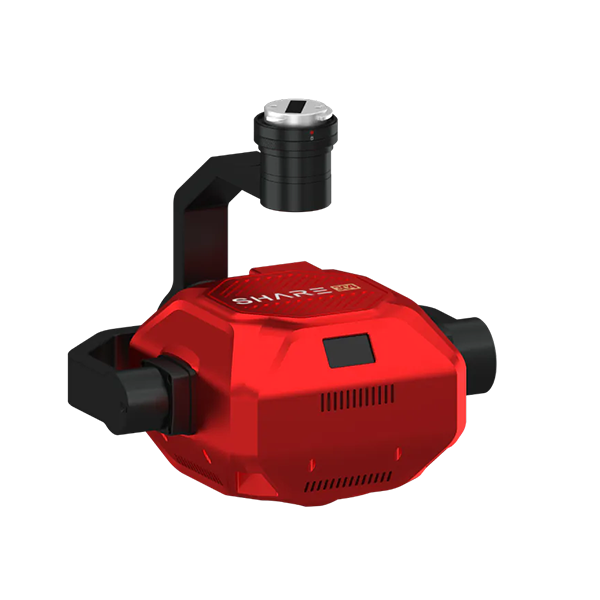

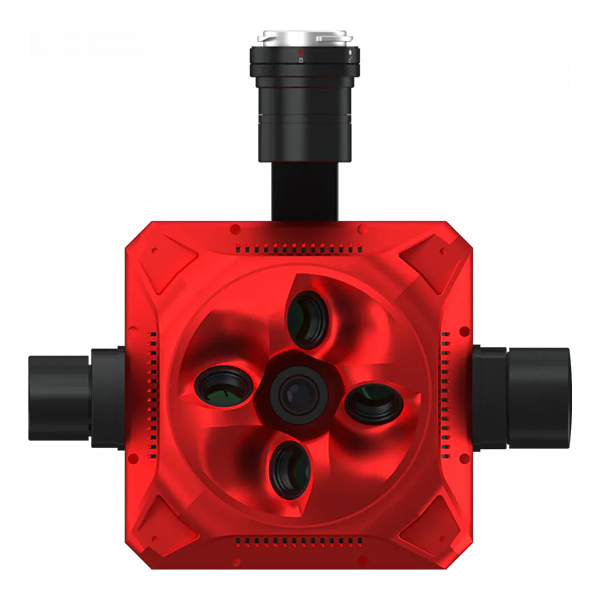

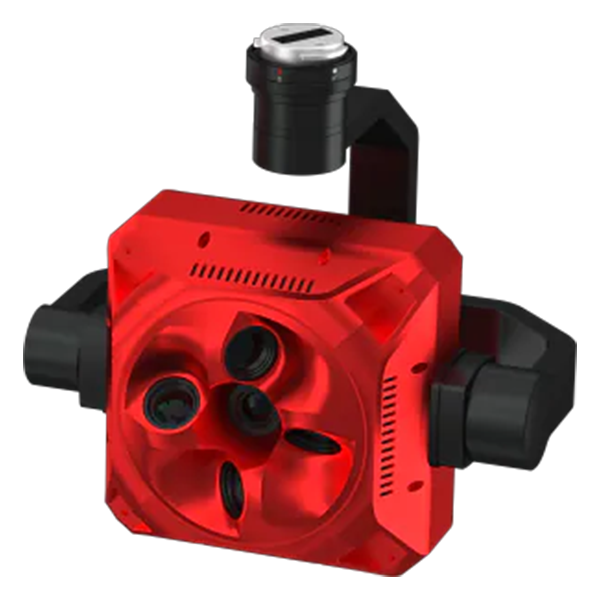

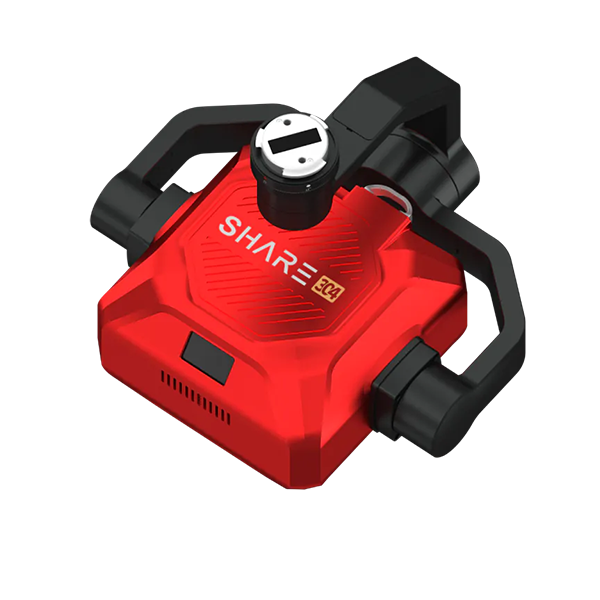

SHARE 304S PRO 5-Lens Aerial Oblique Camera

High-end Full Frame Image Sensor

The camera integrates the latest high-resolution SONY IMX455 full-frame image sensor,  3.76 μm pixel size, over 61 MP in each angle of view and a total of over 305 MP effective pixels.



Professional SGS Global Mapping Shutter

The Shutter is integrated with KIMOTO high-speed shading blade with a double structure to lower the friction coefficient, reaching 1 million times shutter life.



New Version Professional Mapping Lens

The S-ML 2.0 prime lens integrates multi-layer LD low-dispersion optics, multi-layer enhanced nano-coating, and filtered UV and IR bands can suppress glare and clearly depict the details of the subject under strong light.



Independent Shutter Time Calibration

Each camera shutter is time-calibrated individually before leaving the factory, and the trigger time error is controlled at the microsecond level to ensure that the triggering of the five-view camera is synchronized.



TimeSync 2.0 Technique

TimeSync 2.0 time synchronization algorithm is incorporated deeply to realize microsecond-level time synchronization of flight control, single-view camera, gimbal and RTK, simultaneous trigger five cameras, instantly calculate high precision POS location and attitude information, greatly improving the precision of GCPs free.



5-View Image Transmission

The 1080P dynamic Bitstream image transmission can monitor the working status of the camera, switch 5-view image transmission and automatically adjust the Bitstream based on the distance to ensure visual clarity.



Auto Adjust White Balance

The white balance is calibrated independently during camera module production, combined with the excellent color correction algorithm of SHARE, ensuring the stable quality of aerial photos and uniform image color.



Almighty Open Source Adaption

Compatible with a variety of open-source flight control systems, the gimbal and camera can be re-developed to realize monitoring camera operation status, controlling camera, data transmission, image transmission, GCPs free and other functions by developing the SDK, realizing functional adaptation for multiple mounting platforms.



800 Mb/S Data Copying Speed

Users can read the data just by a type-c cable without connecting to the drone. The copying speed of 800 Mb/s makes the workflow more efficient.



For more information contact Aerosmart UAV, the official dealer in Dubai, UAE, at +971501576093 today!

Camera Specs











Overall

Name

SHARE 304S PRO

Size

13013099.5mm; 182.5203196.6mm (with gimbal)

Weight

830g; 1280g (with gimbal)

IP Rate

IP5X

Compatible Platform

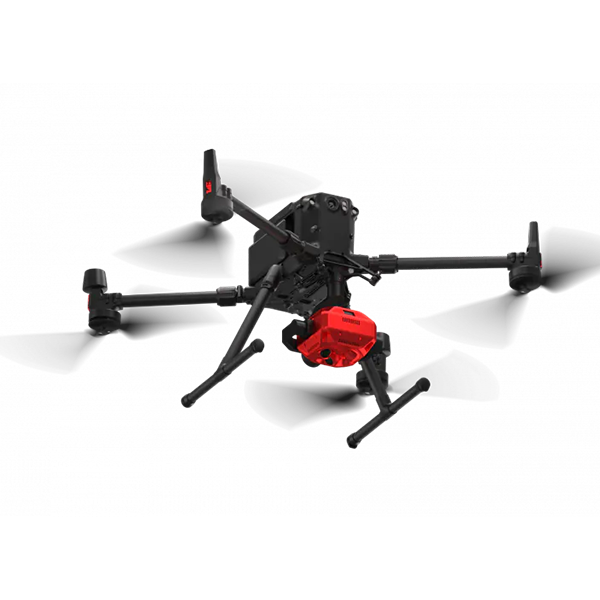

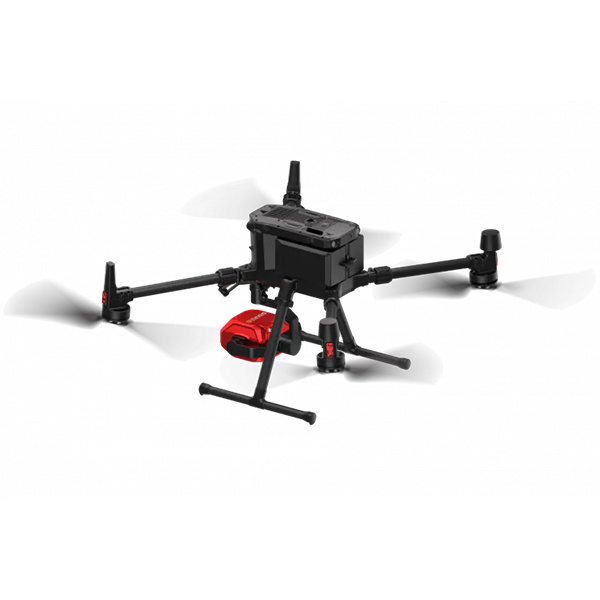

DJI M300 RTK, Other multi-rotor and fixed-wing UAVs

Power Supply

External Power supply with DC 12-50V

Interface

DJI Skyport interface & General interface

Effective Pixels

61 million (total 305 million pixels)

Sensor Size

Sensor size: 36×24mm (Full-frame)

Pixel size

3.76μm

Image Resolution

(3:2) 9552×6368 px















Camera

Acquired Data

Images including GPS and camera parameter / POS file

Focal length

Fixed focus Side view: 56mm, Top-down view: 40mm

Tilt Angle

45 degree

ISO Option

50-200, 50-400, 50-640, 50-800, 50-1000, 50-1600

Shutter Speed

1/500, 1/640, 1/800, 1/1000, 1/1250

Shutter Life

S-GS Global Shutter; Shutter warranty life 1,000,000 times

Aperture Size

Fix to F5.6

Storage

Removable storage module with capacity of 1280GB*2

Image Transmission

Dynamic bitstream HD five-lens image transmission

Exposure Interval

≥1s

Parameter Adjustment

Support adjusting ISO, white balance, color mode and shutter speed through DJI Pilot

Data Copying Speed

800MB/s

Operating Mode

Flight controller trigger, Isometric trigger, and Isochronous trigger

Installation

DJI Skyport or Common interface

Gimbal

Stabilization System

3 axis (pitching, rolling or yawing)

Movement Range

Pitching: -120° to +45°; Rolling: ±25°; Yawing: ±160°



  • 1x Oblique Camera
  • 1x Lens Cover
  • 1x Protection Case
  • 1x Data Storage Module
  • 1x Data Reading Module
  • 1x Data Cable
  • 1x Wipe Cloth
  • 1x Warranty Card
  • 1x User Manual
  • 1x Camera Cable
  • 1x Screw Driver
