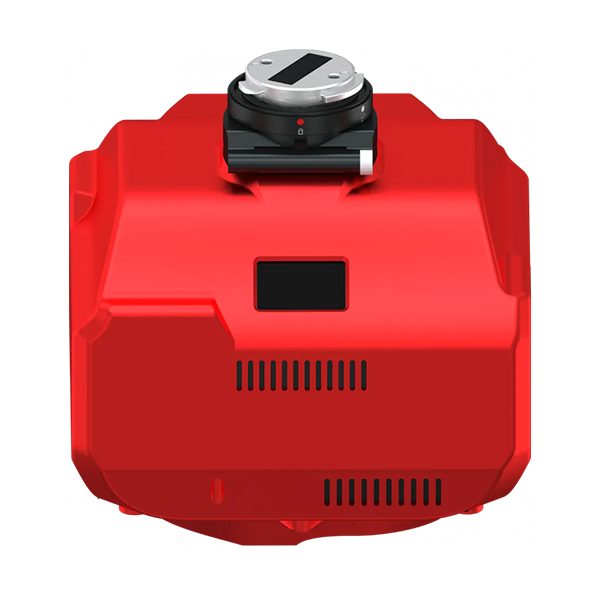

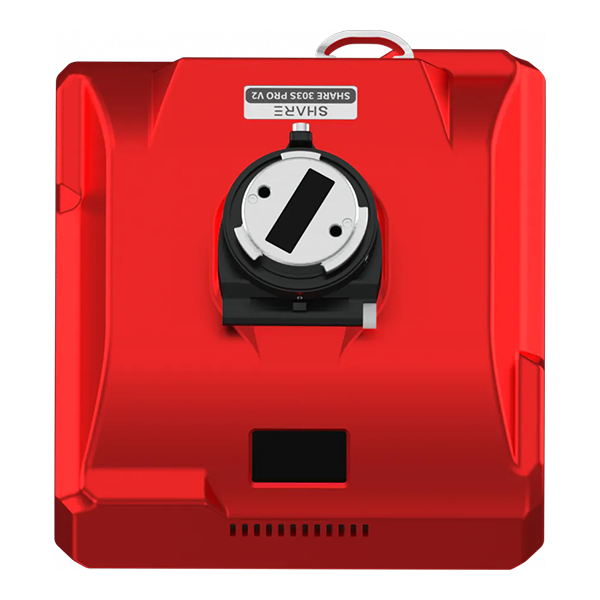

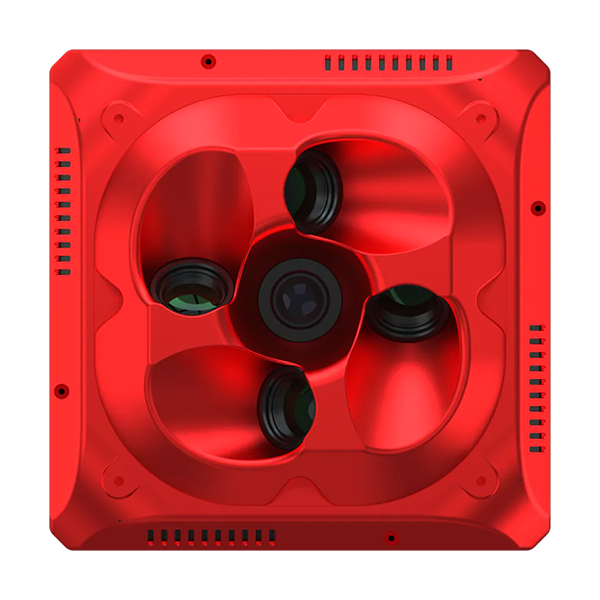

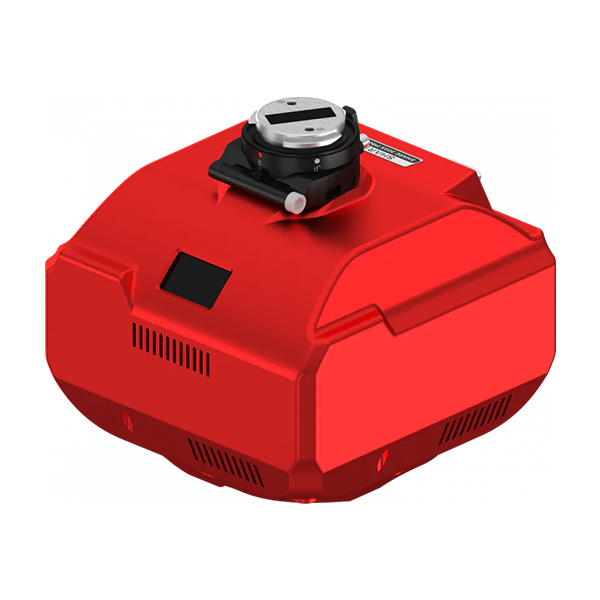

SHARE 303S PRO V2

Ultimate Image Performance

Equipped with 61 MP imaging module independently developed by SHARE (Total 305 MP) and the the latest high-resolution IMX455 full-frame image sensor, this camera brings a high-performance aerial survey experience.



Greater Image Coverage

The high-resolution image sensor can achieve a larger image coverage, and a wider area image can be captured in a single sortie, improving the efficiency and productivity of aerial surveys



Professional mapping Lens

It adopts SHARE's mature S-ML2.0 special lens for surveying and mapping, integrates multiple LD low-dispersion optics, opens up a new horizon for aerial surveying, and can achieve transparent imaging, ultra-low distortion, and highly restores real scenes



Professional SGS Global Mapping Shutter

The shutter is integrated with KIMOTO high-speed shading blade with a double structure to lower the friction coefficient, reaching 1 million times shutter life and avoiding jelly effect.



Custom Parameters

Parameter adjustment function allows users to be more flexible in different aerial survey tasks, and can adapt to project needs to provide users with efficient and accurate data collection solutions.



Independent Shutter Time Calibration

Each camera shutter is time-calibrated individually before leaving the factory, and the trigger time error is controlled at the microsecond level to ensure that the triggering of the five-view camera is synchronized.



Auto Adjust White Balance

The white balance is calibrated independently during camera module production, combined with the excellent color correction algorithm of SHARE, ensuring the stable quality of aerial photos and uniform image color.



1:500 GCPs Free

Microsecond-level time synchronization among camera, drone, RTK and the flight control, realizing accurately read UAV POS information and write photos in real time. No manual setup and deployment of control points is required, to reduce preparation work and labor costs.



High efficient data transferring

Standard 1280G data storage space to meet the storage needs of multiple sorties in large projects, combined with 800MB/S star-speed transmission, greatly enhancing the efficiency of data processing.



Lightweight energy-saving loads

Advanced technology integration and production process to keep the weight of the camera to a minimum. The lightweight structure is easily adapted to fixed-wing, multi-rotor and other drones, and save battery power.



Support re-development adaptation

Compatible with a variety of open-source flight control systems, the gimbal and camera can be re-developed to realize monitoring camera operation status, controlling camera, data transmission, image transmission, GCPs free and other functions by developing the SDK, realizing functional adaptation for multiple mounting platforms.



For more information contact Aerosmart UAV, the official dealer in Dubai, UAE, at +971501576093 today!

Camera Specs













Overall

Name

SHARE 303S PRO V2

Size

130130129.5mm

Weight

886g

IP Rate

IP5X

Compatible Platform

DJI M300 RTK, Other multi-rotor and fixed-wing UAV

Power Supply

External Power supply with DC 12-50V

Interface

DJI Skyport interface & General interface

Effective Pixels

61 million (total 305 million pixels)

Sensor Size

Sensor size: 36×24mm (Full-frame)

Pixel size

3.76μm

Image Resolution

9552 x 6368 px















Camera

Acquired Data

Images including GPS and camera parameter / POS file

Focal length

Fixed focus Side view: 56mm, Top-down view: 40mm

Tilt Angle

45 degree

ISO Option

50-200, 50-400, 50-640, 50-800, 50-1000, 50-1600

Shutter Speed

1/500, 1/640, 1/800, 1/1000, 1/1250

Shutter Life

S-GS Global Shutter; Shutter warranty life 500,000 times

Aperture Size

Fix to F5.6

Storage

Removable storage module with capacity of 1280GB

Image Transmission

Dynamic bitstream HD down-view image transmission

Exposure Interval

≥1s

Parameter Adjustment

Support adjusting ISO, white balance, color mode and shutter speed through DJI Pilot

Data Copying Speed

600MB/s

Operating Mode

Flight Controller Trigger, Isometric Trigger, and Isochronous Trigger

  • 1x Oblique Camera
  • 1x Lens Cover
  • 1x Protection Case
  • 1x Data Storage Module
  • 1x Data Reading Module
  • 1x Data Cable
  • 1x Wipe Cloth
  • 1x Warranty Card
  • 1x User Manual
