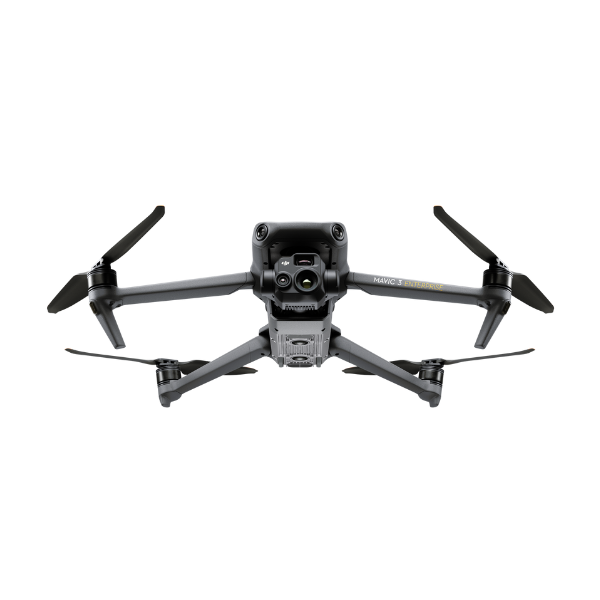

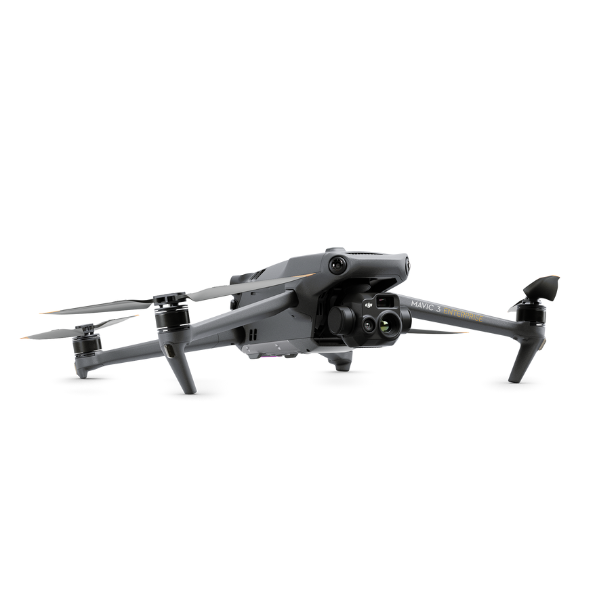

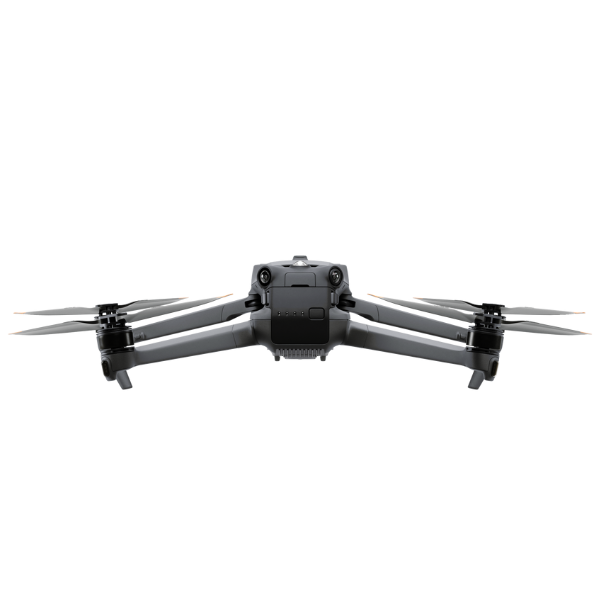

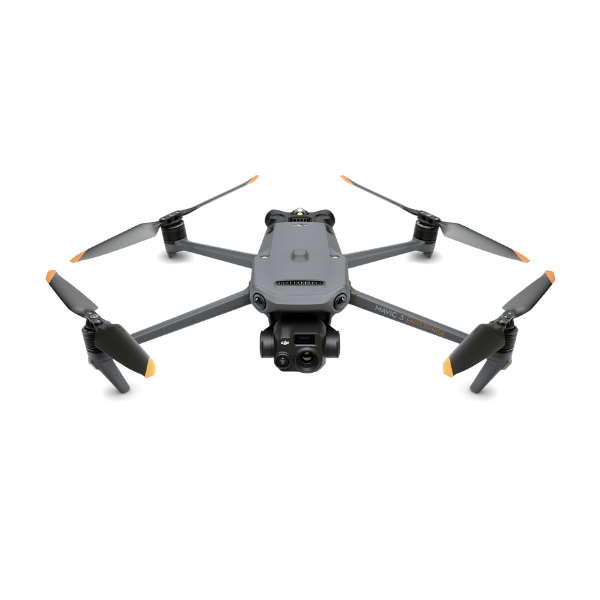

DJI Mavic 3 Thermal (Universal Edition)

Your Everyday Commercial Drone


DJI Mavic 3 Thermal is pushing the new benchmark in portable commercial drones. Mavic 3 Thermal, meanwhile, is promoted as a drone with thermal precision features with the utilization of mechanical shutter plus strong capabilities such as an RTK module for accuracy up to centimeters and zoom lens 56×. Mavic 3 thermal version, a very practical equipment for experts of all kinds in many industries Perfect for critical missions, like night operations or search and rescue, firefighting as well as inspections.

Small, Lightweight, and Prepared for Action

The Mavic enterprise series has a compact form factor, offering ease of transport and rapid deployment. Equipped for long flights and fit even if you are still a newbie at flying these drones.

Unmatched Camera Performance

Take Accurate Photos: The Mavic 3E has a 20MP, wide-angle 4/3 CMOS sensor with a mechanical shutter that reduces motion blur. Shooting at intervals of 0.7 seconds allows you to finish mapping missions incredibly quickly—even in the absence of Ground Control Points.

Capture with Precision: The Mavic 3E is equipped with a wide-angle 4/3 CMOS, 20MP sensor featuring a mechanical shutter that eliminates motion blur. With the ability to shoot at 0.7-second intervals, you can complete mapping missions with incredible efficiency, even without Ground Control Points.

See in Low Light: The Mavic 3E’s wide camera, with large 3.3μm pixels and intelligent low-light mode, offers exceptional performance in dim conditions.

Zoom In on Details: Both the Mavic 3E and Mavic 3T come with a 12MP Zoom Camera, offering up to 56× Hybrid Zoom to help you focus on critical details from a distance.

Thermal Vision: The Mavic 3T’s thermal camera offers 640×512 resolution, supporting point and area temperature measurement, high-temperature alerts, color palettes, and isotherms, enabling you to detect and respond to unseen threats quickly.

Dual Camera View: With the Mavic 3T’s simultaneous split-screen zoom, you can compare thermal and zoom camera views side by side, making complex assessments easier and faster.

Designed for operational efficiency

Longer Flight Time: The batteries of the Mavic 3 are engineered to provide the longest flight trips on a single battery, which is allowed for up to 45 minutes in air. This streamlines your mission and lets you cover over 2 square kilometers in a single flight.

Quick Charging: 100w quick charging hub that can charge upto W88 fast charger providing minimal waiting times for your drone.

Reliable Transmission and Safe Flying

Stable Connections: The quad-antenna O3 Enterprise Transmission system ensures strong and stable connections, even in complex environments.

All-Around Safety: With omnidirectional obstacle sensing, the Mavic 3 is equipped with wide-angle lenses on all sides to avoid obstacles with zero blind spots. Customize proximity alarms and braking distances to suit your mission requirements, while APAS 5.0 ensures automatic rerouting around obstacles.

Advanced Return to Home: The drone's Advanced RTH features automatically plans the most efficient route home, saving power, time, and effort.

Intelligent Mission Planning

Terrain Awareness: The Mavic 3E’s real-time terrain follow feature automatically adjusts altitude when mapping areas with varying elevations, eliminating the need for external elevation data.

Smart Oblique Capture: Enhance your oblique photography with automated gimbal rotation during flight, collecting all the photos needed for high-precision 3D modeling.

Live Mission Recording: Capture every detail of your mission—aircraft movement, gimbal orientation, photo shooting, and zoom level—for seamless automation of future flights.

Corridor Missions: Plan automated flight paths along highways, rivers, and pipelines with ease using Corridor Mission Planning, making large-scale surveying straightforward.

Take Your Operations to the Next Level

Streamlined and compact, Mavic 3 Enterprise Series can be carried in one hand and deployed at a moment's notice. Perfect for beginner and veteran pilots alike, it's built to perform on lengthy missions.

Aircraft

  • Weight (with propellers, without accessories)

  • DJI Mavic 3E: 915 g
    DJI Mavic 3T: 920 g
  • Max Takeoff Weight

  • DJI Mavic 3E: 1,050 g
    DJI Mavic 3T: 1,050 g
  • Dimensions

  • Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
    Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
  • Diagonal Distance

  • 380.1 mm
  • Max Ascent Speed

  • 6 m/s (Normal Mode)
    8 m/s (Sport Mode)
  • Max Descent Speed

  • 6 m/s (Normal Mode)
    6 m/s (Sport Mode)
  • Max Flight Speed (at sea level, no wind)

  • 15 m/s (Normal Mode)
    Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
  • Max Wind Speed Resistance

  • 12 m/s
  • Max Take-off Altitude Above Sea Level

  • 6000 m (without payload)
  • Max Flight Time (no wind)

  • 45 mins
  • Max Hover Time (no wind)

  • 38 mins
  • Max Flight Distance

  • 32 km
  • Max Pitch Angle

  • 30° (Normal Mode)
    35° (Sport Mode)
  • Max Angular Velocity

  • 200°/s
  • GNSS

  • GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
  • Hovering Accuracy

  • Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
    Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
  • Operating Temperature Range

  • -10° to 40° C (14° to 104° F)
  • Internal Storage

  • N/A
  • Motor Model

  • 2008
  • Propeller Model

  • 9453F Propellers for Enterprise
  • Beacon

  • Built into the aircraft

Wide Camera

  • Sensor

  • DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP
    DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
  • Lens

  • DJI Mavic 3E:
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/2.8-f/11
    Focus: 1 m to ∞

    DJI Mavic 3T:
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/2.8
    Focus: 1 m to ∞
  • ISO Range

  • DJI Mavic 3E: 100-6400
    DJI Mavic 3T: 100-25600
  • Shutter Speed

  • DJI Mavic 3E:
    Electronic Shutter: 8-1/8000 s
    Mechanical Shutter: 8-1/2000 s

    DJI Mavic 3T:
    Electronic Shutter: 8-1/8000 s
  • Max Image Size

  • DJI Mavic 3E: 5280×3956
    DJI Mavic 3T: 8000×6000
  • Still Photography Modes

  • DJI Mavic 3E:
    Single: 20 MP
    Timed: 20 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    JPEG+RAW: 3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 20 MP
    Panorama: 20 MP (raw image)

    DJI Mavic 3T:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 2/3/5/7/10/15/20/30/60 s*
    Panorama: 12 MP (raw image); 100 MP (stitched image)

    * Shooting 48MP photo does not support 2s interval
    Smart Low-light Shooting: 12 MP
  • Video Resolution

  • H.264
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps
  • Bitrate

  • DJI Mavic 3E:
    4K: 130 Mbps
    FHD: 70 Mbps

    DJI Mavic 3T:
    4K: 85 Mbps
    FHD: 30 Mbps
  • Supported File Formats

  • exFAT
  • Photo Format

  • DJI Mavic 3E: JPEG/DNG (RAW)
    DJI Mavic 3T: JPEG
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)

Tele Camera

  • Sensor

  • 1/2-inch CMOS, Effective pixels: 12 MP
  • Lens

  • FOV: 15°
    Format Equivalent: 162 mm
    Aperture: f/4.4
    Focus: 3 m to ∞
  • ISO Range

  • DJI Mavic 3E: 100-6400
    DJI Mavic 3T: 100-25600
  • Shutter Speed

  • Electronic Shutter: 8-1/8000 s
  • Max Image Size

  • 4000×3000
  • Photo Format

  • JPEG
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes

  • DJI Mavic 3E:
    Single: 12 MP
    Timed: 12 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 12 MP

    DJI Mavic 3T:
    Single: 12 MP
    Timed: 12 MP
    JPEG: 2/3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 12 MP
  • Video Resolution

  • H.264
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps
  • Bitrate

  • DJI Mavic 3E:
    4K: 130 Mbps
    FHD: 70 Mbps

    DJI Mavic 3T:
    4K: 85 Mbps
    FHD: 30 Mbps
  • Digital Zoom

  • 8x (56x hybrid zoom)

Thermal Camera

  • Thermal Imager

  • Uncooled VOx Microbolometer
  • Pixel Pitch

  • 12 μm
  • Frame Rate

  • 30 Hz
  • Lens

  • DFOV: 61°
    Format Equivalent: 40 mm
    Aperture: f/1.0
    Focus: 5 m to ∞
  • Noise Equivalent Temperature Difference (NETD)

  • ≤50 mK@F1.0
  • Temperature Measurement Method

  • Spot Meter, Area Measurement
  • Temperature Measurement Range

  • -20° to 150° C (-4° to 302° F, High Gain Mode)
    0° to 500° C (32° to 932° F, Low Gain Mode)
  • Palette

  • White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  • Photo Format

  • JPEG (8-bit)
    R-JPEG (16-bit)
  • Video Resolution

  • 640×512@30fps
  • Bitrate

  • 6 Mbps
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes

  • DJI Mavic 3T:
    Single: 640×512
    Timed: 640×512
    JPEG: 2/3/5/7/10/15/20/30/60 s
  • Digital Zoom

  • 28x
  • Infrared Wavelength

  • 8-14 μm
  • Infrared Temperature Measurement Accuracy

  • ±2° C or ±2% (using the larger value)

Gimbal

  • Stabilization

  • 3-axis (tilt, roll, pan)
  • Mechanical Range

  • DJI Mavic 3E:
    Tilt: -135° to 100°
    Roll: -45° to 45°
    Pan: -27° to 27°

    DJI Mavic 3T:
    Tilt: -135° to 45°
    Roll: -45° to 45°
    Pan: -27° to 27°
  • Controllable Range

  • Tilt: -90° to 35°
    Pan: Not controllable
  • Max Control Speed (tilt)

  • 100°/s
  • Angular Vibration Range

  • ±0.007°

Sensing

  • Type

  • Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
  • Forward

  • Measurement Range: 0.5-20 m
    Detection Range: 0.5-200 m
    Effective Sensing Speed: Flight Speed ≤15 m/s
    FOV: Horizontal 90°, Vertical 103°
  • Backward

  • Measurement Range: 0.5-16 m
    Effective Sensing Speed: Flight Speed ≤12 m/s
    FOV: Horizontal 90°, Vertical 103°
  • Lateral

  • Measurement Range: 0.5-25 m
    Effective Sensing Speed: Flight Speed ≤15 m/s
    FOV: Horizontal 90°, Vertical 85°
  • Upward

  • Measurement Range: 0.2-10 m
    Effective Sensing Speed: Flight Speed ≤6 m/s
    FOV: Front and Back 100°, Left and Right 90°
  • Downward

  • Measurement Range: 0.3-18 m
    Effective Sensing Speed: Flight Speed ≤6 m/s
    FOV: Front and Back 130°, Left and Right 160°
  • Operating Environment

  • Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
    Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

Video Transmission

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Live View Quality

  • Remote Controller: 1080p/30fps
  • Operating Frequency

  • 2.400-2.4835 GHz
    5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference)

  • DJI Mavic 3E:
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 km

    DJI Mavic 3T:
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 km
  • Max Transmission Distance (Obstructed)

  • Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
    Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
  • Max Download Speed

  • 15 MB/s (with DJI RC Pro Enterprise)
  • Latency (depending on environmental conditions and mobile device)

  • Approx. 200 ms
  • Antenna

  • 4 Antennas, 2T4R
  • Transmission Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

DJI RC Pro Enterprise

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Max Transmission Distance (unobstructed, free of interference)

  • FCC: 15 km
    CE/SRRC/MIC: 8 km
  • Video Transmission Operating Frequency

  • 2.400-2.4835 GHz
    5.725-5.850 GHz
  • Antenna

  • 4 Antennas, 2T4R
  • Video Transmission Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)
  • Wi-Fi Protocol

  • 802.11 a/b/g/n/ac/ax
    Support 2×2 MIMO Wi-Fi
  • Wi-Fi Operating Frequency

  • 2.400-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
  • Wi-Fi Transmitter Power (EIRP)

  • 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
    5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
  • Bluetooth Protocol

  • Bluetooth 5.1
  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP)

  • < 10 dBm
  • Screen Resolution

  • 1920×1080
  • Screen Size

  • 5.5 inches
  • Screen

  • 60 fps
  • Brightness

  • 1,000 nits
  • Touchscreen Control

  • 10-point multi-touch
  • Battery

  • Li-ion (5000 mAh @ 7.2 V)
  • Charging Type

  • Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
  • Rated Power

  • 12 W
  • Storage Capacity

  • Internal Storage (ROM): 64 GB
    Supports a microSD card for expanded capacity.
  • Charging Time

  • Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V)
    Approx. 2 hours (with a USB charger at 12 V)
    Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
  • Operating Time

  • Approx. 3 hours
  • Video Output Port

  • Mini-HDMI port
  • Operating Temperature Range

  • -10° to 40° C (14° to 104° F)
  • Storage Temperature

  • -30° to 60° C (-22° to 140° F) (within one month)
    -30° to 45° C (-22° to 113° F) (one to three months)
    -30° to 35° C (-22° to 95° F) (three to six months)
    -30° to 25° C (-22° to 77° F) (more than six months)
  • Charging Temperature

  • 5° to 40° C (41° to 104° F)
  • Supported DJI Aircraft[10]

  • DJI Mavic 3E
    DJI Mavic 3T
  • GNSS

  • GPS+Galileo+GLONASS
  • Dimensions

  • Antennas folded and controller sticks unmounted:
    183.27×137.41×47.6 mm (L×W×H)
    Antennas unfolded and controller sticks mounted:
    183.27×203.35×59.84 mm (L×W×H)
  • Weight

  • Approx. 680 g
  • Model

  • RM510B

Storage

  • Supported Memory Cards

  • Aircraft:
    U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
  • Recommended microSD Cards

  • Remote Controller:
    SanDisk Extreme PRO 64GB V30 A2 microSDXC
    SanDisk High Endurance 64GB V30 microSDXC
    SanDisk Extreme 128GB V30 A2 microSDXC
    SanDisk Extreme 256GB V30 A2 microSDXC
    SanDisk Extreme 512GB V30 A2 microSDXC
    Lexar 667x 64GB V30 A2 microSDXC
    Lexar High-Endurance 64GB V30 microSDXC
    Lexar High-Endurance 128GB V30 microSDXC
    Lexar 667x 256GB V30 A2 microSDXC
    Lexar 512GB V30 A2 microSDXC
    Samsung EVO Plus 64GB V30 microSDXC
    Samsung EVO Plus 128GB V30 microSDXC
    Samsung EVO Plus 256GB V30 microSDXC
    Samsung EVO Plus 512GB V30 microSDXC
    Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
    Kingston Canvas React Plus 128GB V90 A1 microSDXC

    Aircraft:
    SanDisk Extreme 32GB V30 A1 microSDHC
    SanDisk Extreme PRO 32GB V30 A1 microSDHC
    SanDisk Extreme 512GB V30 A2 microSDXC
    Lexar 1066x 64GB V30 A2 microSDXC
    Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
    Kingston Canvas React Plus 64GB V90 A1 microSDXC
    Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
    Kingston Canvas React Plus 128GB V90 A1 microSDXC
    Kingston Canvas React Plus 256GB V90 A2 microSDXC
    Samsung PRO Plus 256GB V30 A2 microSDXC

Battery

  • Capacity

  • 5000 mAh
  • Standard Voltage

  • 15.4 V
  • Max Charging Voltage

  • 17.6 V
  • Type

  • LiPo 4S
  • Chemical System

  • LiCoO2
  • Energy

  • 77 Wh
  • Weight

  • 335.5 g
  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

Charger

  • Input

  • 100-240 V (AC Power), 50-60 Hz, 2.5 A
  • Output Power

  • 100 W
  • Output

  • Max. 100 W (total)
    When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.

Charging Hub

  • Input

  • USB-C: 5-20 V, 5.0 A
  • Output

  • Battery Port: 12-17.6 V, 8.0 A
  • Rated Power

  • 100 W
  • Charging Type

  • Three batteries charged in sequence
  • Charging Temperature Range

  • 5° to 40° C (41° to 104° F)

RTK Module

  • Dimensions

  • 50.2×40.2×66.2 mm (L×W×H)
  • Weight

  • 24±2 g
  • Interface

  • USB-C
  • Power

  • Approx. 1.2 W
  • RTK Positioning Accuracy

  • RTK Fix:
    Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

Speaker

  • Dimensions

  • 114.1×82.0×54.7 mm (L×W×H)
  • Weight

  • 85±2 g
  • Interface

  • USB-C
  • Rated Power

  • 3 W
  • Max Volume

  • 110 dB @ 1 m
  • Effective Broadcast Distance

  • 100 m @ 70 dB
  • Bit Rate

  • 16 Kbps/32 Kbps
  • Operating Temperature Range

  • -10° to 40° C (14° to 104° F)


1x Drone DJI Mavic 3 Thermal

1x DJI Intelligent Flight Battery

1x microSD Card 64GB

1x  DJI Gimbal Protector

3x  Mavic 3 Enterprise Series Propellers (Pair)

1x RC Pro Enterprise

1x Screwdriver

1x USB-C Power Adapter (100W)

1x 100W Power Adaptor AC Cable

1x USB-C cable

1x USB-C to USB-C Cable

1x Protector Case

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

Related products

Product Queries (0)

Login or Registerto submit your questions to seller

Other Questions

No none asked to seller yet
