DJI Matrice 350 RTK

(0 reviews)
Brand
DJIDJI

Inhouse product

Enquire Now

Share

Enquire Now

Introduction

The DJI Matrice 350 RTK is an upgraded flagship drone platform setting new benchmarks for industrial drones. As DJI's most advanced enterprise drone yet, this next-generation platform features an array of innovative capabilities to streamline complex aerial operations.

With powerful propulsion and rugged, reliable design, the DJI Matrice 350 RTK delivers exceptional flight performance. It offers up to 55 minutes of maximum flight time and can withstand challenging weather with an IP55 protection rating, operating in temperatures from -20°C to 50°C. The drone provides a 7000 meter maximum flight altitude and 12 m/s maximum wind speed resistance to handle demanding conditions.

At the core of the DJI Matrice 350 RTK is DJI's cutting-edge O3 Enterprise Transmission technology, supporting 1080p HD video feeds up to 20km away. The advanced transmission system allows both the drone and remote controller to intelligently switch between four antennas to counter signal interference. Additionally, 4G network transmission combines with O3 video feeds for unparalleled stability when operating around urban obstacles.

The drone platform is controlled by the DJI RC Plus remote controller, optimized for harsh environments with an IP54 rating and versatile controls. It includes customizable buttons and dials plus a high-brightness 7-inch screen. Dual Operator Mode further expands functionality along with an external WB37 battery for up to six hours of operation. Intuitive flight and payload operation is provided through the polished DJI Pilot 2 mobile app.

An upgraded battery system enables unmatched performance, featuring a new dual-battery TB65 setup supporting hot-swapping for continuous operation. With an industry-leading 400 charge cycles, the batteries drastically improve cost efficiency. The accompanying BS65 Intelligent Battery Station offers flexible charging plus automated status monitoring and management through the DJI Pilot 2 app.

Comprehensive safety enhancements like arm lock detection sensors and a night-vision FPV camera augment the DJI Matrice 350 RTK's six-directional sensing and positioning system. The optionally integrated CSM radar even detects obstacles up to 30 meters away. Multi-layered redundancy across critical systems assures reliability for sensitive applications.

This flagship platform leads its class in payload versatility as well, boasting support for single and dual downward gimbals plus a single upward gimbal to carry multiple payloads simultaneously. With up to 2.7kg capacity, it readily equips payloads like the Zenmuse camera series, Lidar sensors, and more. The DJI Matrice 350 RTK empowers seamless integration into public safety operations, infrastructure inspection routines, environmental surveys, high-accuracy mapping, and more.

Now available from leading UAE drone supplier Aerosmart, you can buy the DJI Matrice 350 RTK to pioneer the next generation of industrial drone solutions. Whether you're looking to buy the DJI Matrice 350 RTK online or in-person, it's now accessible in Dubai and throughout the UAE.


FAQs

1. What is the flight time of the DJI Matrice 350 RTK?

The Matrice 350 RTK has a maximum flight time of 55 minutes. Its intelligent battery system supports hot-swapping batteries for extended flights.

2. What payloads can I use with the Matrice 350 RTK?

The Matrice 350 RTK supports many DJI Zenmuse cameras like the Z30, H20, and L1 Lidar sensor. It can also equip third-party payloads up to 2.7kg using the DJI Payload SDK.

3. Does the Matrice 350 RTK have redundant systems?

Yes, the Matrice 350 RTK features triple modular redundancy across critical components like IMUs, compasses, and GPS modules for enhanced reliability.

4. Can I buy the Matrice 350 RTK in Dubai or the UAE?

Yes, leading drone supplier Aerosmart offers the Matrice 350 RTK for purchase in the UAE. Contact Aerosmart sales at +971 5015 76093 or sales@aerosmart.ae.

5. How far can the Matrice 350 RTK drone fly?

With the O3 Enterprise Transmission system, the Matrice 350 RTK can fly up to 20km away while maintaining a 1080p video feed.

6. Can I operate the Matrice 350 RTK drone beyond visual line of sight?

Yes, the long-range HD video transmission capabilities of the Matrice 350 RTK allow for beyond visual line of sight flights.

7. Does the Matrice 350 RTK work with the DJI FlightHub platform?

Yes, the Matrice 350 RTK integrates with DJI FlightHub for fleet management, real-time data collection, and coordination between drone, ground, and cloud systems.

8. What makes the Matrice 350 RTK an industrial drone?

Rugged, reliable construction, long flight time, dual operator mode, high-accuracy RTK positioning, and extensive accessory and payload support equip the Matrice 350 RTK for demanding industrial applications.

9. What accessories are available for the Matrice 350 RTK?

Compatible accessories include additional batteries, battery charging hubs, dual controllers, rugged carrying cases, and the DJI Dock payload mounting station.

10. Can the Matrice 350 RTK drone handle windy conditions?

Yes, the Matrice 350 RTK provides 12 m/s of maximum wind resistance, allowing stable flight in most environments.

Aircraft

  • Dimensions (unfolded, without propellers)

  • 810×670×430 mm (L×W×H)
  • Dimensions (folded, with propellers)

  • 430×420×430 mm (L×W×H)
  • Diagonal Wheelbase

  • 895 mm
  • Weight (with single downward gimbal)

  • Without batteries:
    Approx. 3.77 kg

    With two TB65 batteries:
    Approx. 6.47 kg
  • Single Gimbal Damper’s Max Payload

  • 960 g
  • Max Takeoff Weight

  • 9.2 kg
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz

    In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.150-5.250 GHz (CE: 5.170-5.250 GHz):
    < 23 dBm (CE)

    5.725-5.850 GHz:
    < 33 dBm (FCC/SRRC)
    < 14 dBm (CE)
  • Hovering Accuracy (with moderate or no wind)

  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±1.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)
  • RTK Positioning Accuracy (RTK FIX)

  • 1 cm + 1 ppm (horizontal)
    1.5 cm + 1 ppm (vertical)
  • Max Angular Velocity

  • Pitch: 300°/s
    Yaw: 100°/s
  • Max Pitch Angle

  • 30°
    When in N mode and with the forward vision system enabled: 25°.
  • Max Ascent Speed

  • 6 m/s
  • Max Descent Speed (vertical)

  • 5 m/s
  • Max Tilted Descent Speed

  • 7 m/s
  • Max Horizontal Speed

  • 23 m/s
  • Max Flight Altitude

  • 5000 m
    When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.

    7000 m
    When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.
  • Max Wind Speed Resistance

  • 12 m/s
  • Max Flight Time

  • 55 minutes
    Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
  • Supported DJI Gimbals

  • Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1
  • Third-Party Payload

  • Supports only certified payloads developed based on DJI Payload SDK.
  • Supported Gimbal Configurations

  • Single downward gimbal
    Single upward gimbal
    Dual downward gimbals
    Single downward gimbal + single upward gimbal
    Dual downward gimbals + single upward gimbal
  • Ingress Protection Rating

  • IP55
    The IP rating is not permanently effective and may decrease due to product wear and tear.
  • Global Navigation Satellite System

  • GPS + GLONASS + BeiDou + Galileo
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

Remote Controller

  • Screen

  • 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
  • Weight

  • Approx. 1.25 kg (without WB37 battery)
    Approx. 1.42 kg (with WB37 battery)
  • Global Navigation Satellite System

  • GPS + Galileo + BeiDou
  • Built-in Battery

  • Type: Li-ion (6500 mAh@7.2 V)
    Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
    Charging Time: 2 hours
    Chemical System: LiNiCoAlO2
  • External Battery (WB37 Intelligent Battery)

  • Capacity: 4920 mAh
    Voltage: 7.6 V
    Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2
  • Ingress Protection Rating

  • IP54
  • Operating Time

  • Built-in Battery: approx. 3.3 hours
    Built-in Battery + External Battery: approx. 6 hours
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    < 33 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)
  • Wi-Fi Protocol

  • Wi-Fi 6
  • Wi-Fi Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
  • Bluetooth Protocol

  • Bluetooth 5.1
  • Bluetooth Operating Frequency

  • 2.4000-2.4835 GHz

Video Transmission

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Antenna

  • 4 video transmission antennas, 2T4R
  • Max Transmission Distance (unobstructed, free of interference)

  • 20 km (FCC)
    8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference)

  • Low Interference and Obstructed by Buildings: approx. 0-0.5 km
    Low Interference and Obstructed by Trees: approx. 0.5-3 km
    Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
    Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
    Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

    Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.

Vision System

  • Obstacle Sensing Range

  • Forward/Backward/Left/Right: 0.7-40 m
    Upward/Downward: 0.6-30 m
  • FOV

  • Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
    Left/Right/Upward: 75° (horizontal), 60° (vertical)
  • Operating Environment

  • Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

  • Obstacle Sensing Range

  • 0.1-8 m
  • FOV

  • 30° (±15°)
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

  • Effective Illumination Distance

  • 5 m
  • Illumination Type

  • 60 Hz, solid glow

FPV Camera

  • Resolution

  • 1080p
  • FOV

  • 142°
  • Frame Rate

  • 30fps

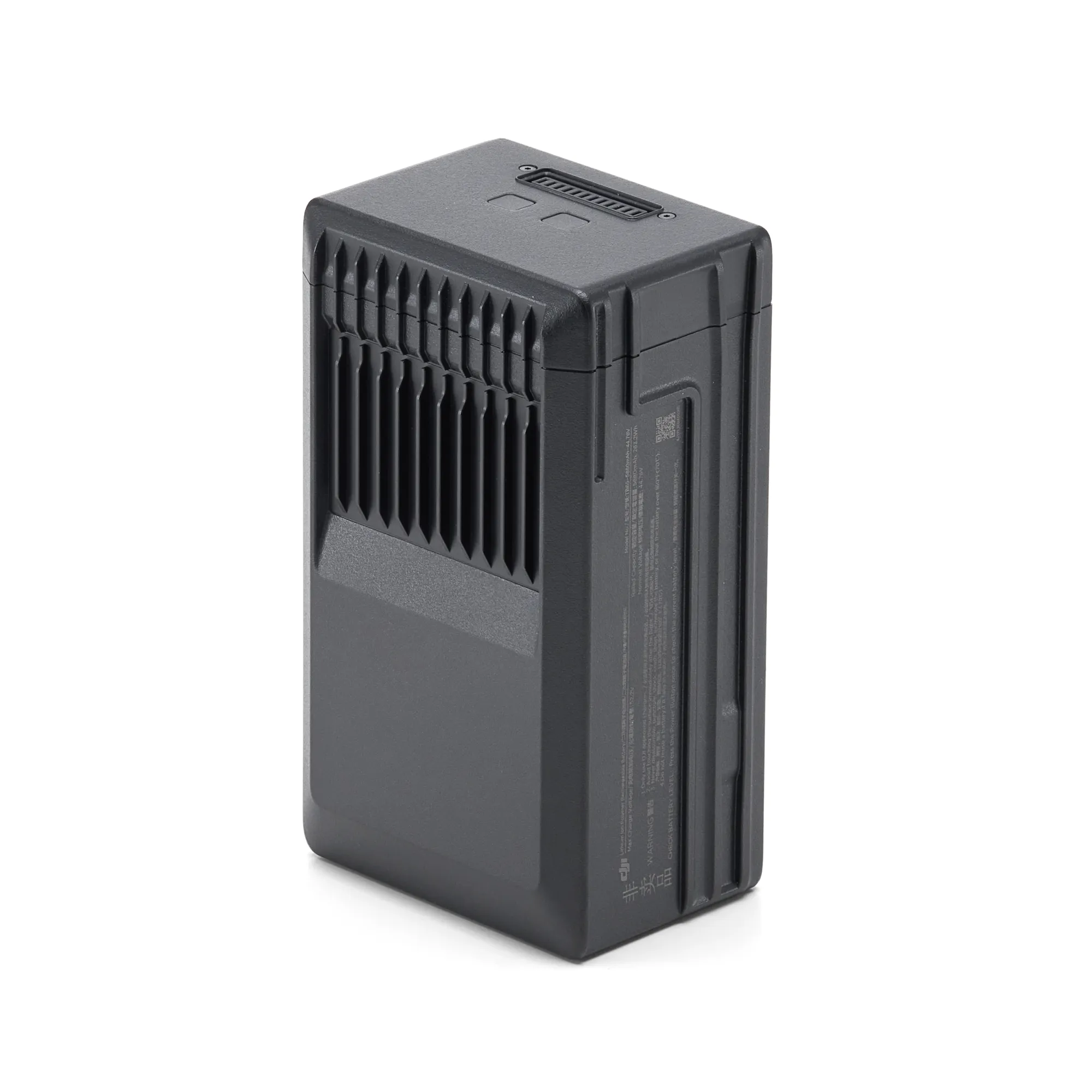

Intelligent Flight Battery

  • Model

  • TB65
  • Capacity

  • 5880 mAh
  • Voltage

  • 44.76 V
  • Type

  • Li-ion
  • Energy

  • 263.2 Wh
  • Weight

  • Approx. 1.35 kg
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Ideal Storage Temperature

  • 22° to 30° C (71.6° to 86° F)
  • Charging Temperature

  • -20° to 40° C (-4° to 104° F)
    When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
  • Charging Time

  • With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
    With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

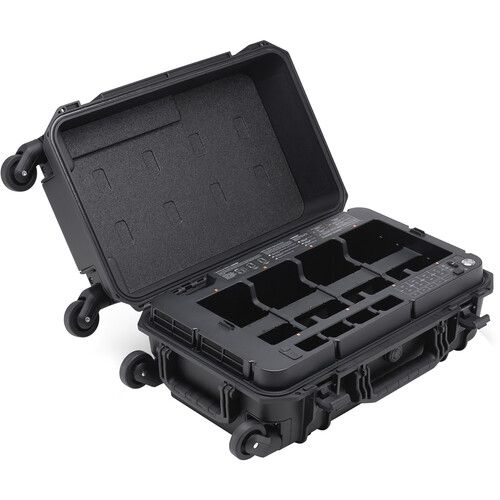

Intelligent Battery Station

  • Dimensions

  • 580×358×254 mm (L×W×H)
  • Net Weight

  • Approx. 8.98 kg
  • Compatible Stored Items

  • Eight TB65 Intelligent Flight Batteries
    Four WB37 Intelligent Batteries
  • Input Voltage

  • 100-120 VAC, 50-60 Hz
    220-240 VAC, 50-60 Hz
  • Max Input Power

  • 1070 W
  • Output Power

  • 100-120 V: 750 W
    220-240 V: 992 W
  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)

1x DJI Matrice 350RTK

2x Landing Gear

1x 2110s Propeller(Pair)

1x DJI RC Plus Remote Controller

1x WB37 Intelligent Battery

4x Spare Gimbal Damper

Screws and Tools

1x Cleaning Tools

1x Rubber Port Cover (Set)

1x Carrying Case

Manuals
