DJI Matrice 30T Emergency Response and Surveillance Combo: Ultimate Response and Observation Solution

The DJI Matrice 30T Emergency and Surveillance Combo is a cutting-edge drone package designed to enhance emergency response and surveillance operations. With its robust features and advanced technology, this combo provides unparalleled support for various critical missions, ensuring safety and efficiency in challenging environments.



Unmatched Durability and Performance

The DJI Matrice 30T is built to withstand harsh conditions, featuring IP55 protection that ensures reliable operation in rain, snow, and dust. Its wide operating temperature range of -20°C to 50°C makes it suitable for extreme climates, from freezing cold to scorching heat. This resilience allows responders to rely on the drone in any situation, regardless of weather or environment.



Advanced Safety Features

Safety is paramount in emergency situations, and the Matrice 30T excels in this area with its integrated ADS-B receiver, providing real-time alerts about nearby crewed aircraft. This feature, combined with the drone's multiple redundancies, such as dual batteries, dual transmission links, and sensor redundancy, ensures continuous and safe operation even in the most unpredictable scenarios.



Enhanced Surveillance Capabilities

Equipped with the Zenmuse H20T payload, the Matrice 30T offers powerful multi-sensor capabilities. The H20T features a 20MP zoom camera, a 12MP wide camera, a radiometric thermal camera, and a laser rangefinder, enabling comprehensive situational awareness. This combination is ideal for identifying hotspots, assessing situations from a distance, and capturing high-resolution imagery for detailed analysis.



Efficient and Effective Emergency Response

The Matrice 30T’s foldable and portable design makes it easy to deploy quickly, providing rapid response in critical situations. Whether it's a search and rescue mission, disaster assessment, or law enforcement operation, the drone's ability to access hard-to-reach areas and deliver real-time data significantly enhances operational efficiency.



Seamless Integration and Control

The DJI RC Plus controller, included in this combo, features a 7-inch high-brightness screen for clear visibility even in direct sunlight. With its ergonomic design and intuitive controls, the RC Plus ensures smooth and effective drone operation. The controller is also IP54-rated, ensuring durability and reliability in various weather conditions.



Versatility Across Missions

The Matrice 30T Emergency and Surveillance Combo is designed to adapt to a wide range of applications. Its versatility makes it an invaluable tool for public safety teams, fire departments, law enforcement agencies, and inspection crews. From monitoring large areas and assessing damage to tracking suspects and conducting thermal inspections, this combo provides the necessary tools for comprehensive surveillance and response.



Conclusion

For those seeking a reliable, versatile, and powerful drone solution for emergency response and surveillance, the DJI Matrice 30T Emergency and Surveillance Combo stands out as the ultimate choice. Its advanced features, robust construction, and superior performance make it an indispensable asset in critical missions, ensuring safety, efficiency, and success in every operation. Aerosmart UAV is the official DJI Enterprise dealer in Dubai, UAE. For more details, contact +971501576093.

Aircraft

  • Dimensions
    (unfolded, excl. propellers)

  • 470×585×215 mm (L×W×H)
  • Dimensions (folded)

  • 365×215×195 mm (L×W×H)
  • Diagonal Wheelbase

  • 668 mm
  • Weight (incl. two batteries)

  • 3770 ± 10 g
  • Max Takeoff Weight

  • 4069 g
  • Max Takeoff Weight for C2 Certification in EU

  • 3998 g
  • Operation Frequency[1]

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
  • Hovering Accuracy
    (windless or breezy)

  • Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
    Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
  • RTK Positioning Accuracy
    (fixed RTK enabled)

  • 1 cm+1 ppm (horizontal)
    1.5 cm+1 ppm (vertical)
  • Max Angular Velocity

  • Pitch: 150°/sec.; Yaw: 100°/sec.
  • Max Pitch Angle

  • 35° (N-mode and Forward Vision System enabled: 25°)
  • Max Ascent/Descent Speed

  • 6 m/s, 5 m/s
  • Max Tilt Descent Speed

  • 7 m/s
  • Max Horizontal Speed

  • 23 m/s
  • Max Service Ceiling Above Sea Level (without other payload)

  • 5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers)
  • Max Wind Resistance

  • 12 m/s
  • Max Hover Time [2]

  • 36 min
  • Max Flight Time[2]

  • 41 min
  • Motor Model

  • 3511
  • Propeller Model

  • 1671
    1676 High Altitude (not included)
  • Ingress Protection Rating[3]

  • IP55
  • GNSS

  • GPS+Galileo+BeiDou+GLONASS
    (GLONASS is supported only when RTK module is enabled)
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Class

  • C2 (EU)

Gimbal

  • Angular Vibration Range

  • ±0.01°
  • Controllable Range

  • Pan: ±90°
    Tilt: -120° to +45°
  • Mechanical Range

  • Pan: ±105°
    Tilt: -135° to +60°
    Roll: ±45°

Zoom Camera

  • Sensor

  • 1/2" CMOS, Effective pixels: 48M
  • Lens

  • Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to ∞
  • Exposure Compensation

  • ±3 ev (using 1/3 ev as step length)
  • Electronic Shutter Speed

  • Auto Mode:
    Photo: 1/8000-1/2 s
    Video: 1/8000-1/30 s
    M Mode:
    Photo: 1/8000-8 s
    Video: 1/8000 -1/30 s
  • ISO Range

  • 100-25600
  • Max. Video Resolution

  • 3840×2160
  • Max Photo Size

  • 8000×6000

Wide Camera

  • Sensor

  • 1/2" CMOS, Effective pixels: 12M
  • Lens

  • DFOV: 84°
    Focal length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1 m to ∞
  • Exposure Compensation

  • ±3 ev (using 1/3 ev as step length)
  • Electronic Shutter Speed

  • Auto Mode:
    Photo: 1/8000-1/2 s
    Video: 1/8000-1/30 s

    M Mode:
    Photo: 1/8000-8 s
    Video: 1/8000-1/30 s
  • ISO Range

  • 100-25600
  • Max. Video Resolution

  • 3840×2160
  • Photo Size

  • 4000×3000

Thermal Camera

  • Thermal Imager

  • Uncooled VOx Microbolometer
  • Lens

  • DFOV: 61°
    Focal length: 9.1 mm (equivalent: 40 mm)
    Aperture: f/1.0
    Focus: 5 m to ∞
  • Noise Equivalent Temperature Difference (NETD)

  • ≤50 mK@F1.0
  • Infrared Temperature Measurement Accuracy[4]

  • ±2°C or ±2% (using the larger value)
  • Video Resolution

  • Infrared Image Super-resolution Mode: 1280×1024
    Normal Mode: 640×512
  • Photo Size

  • Infrared Image Super-resolution Mode: 1280×1024
    Normal Mode: 640×512
  • Pixel Pitch

  • 12 um
  • Temperature Measurement Method

  • Spot Meter, Area Measurement
  • Temperature Measurement Range

  • High Gain Mode: -20° to 150° C (-4° to 302° F)
    Low Gain Mode: 0° to 500° C (32° to 932° F)
  • Temperature Alert

  • Supported
  • Palette

  • White Hot/Black Hot/Tint/Iron Red/Hot
    Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

  • Resolution

  • 1920×1080
  • DFOV

  • 161°
  • Frame Rate

  • 30 fps

Laser Module

  • Wavelength

  • 905 nm
  • Max Laser Power

  • 3.5 mW
  • Single Pulse Width

  • 6 ns
  • Measurement Accuracy

  • ± (0.2 m + D×0.15%)
    D is the distance to a vertical surface
  • Measuring Range

  • 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
  • Safety Regulation Level

  • Class 1M
  • Accessible Emission Limit (AEL)

  • 304.8 nJ
  • Reference Aperture

  • 18mm length, 18mm width (20.3mm diameter if equivalent to circular)
  • Max Laser Pulse Emission Power Within 5 Nanoseconds

  • 60.96 W

Vision Systems

  • Obstacle Sensing Range

  • Forward: 0.6-38 m
    Upward/Downward/Backward/Sideward: 0.5-33 m
  • FOV

  • 65° (H), 50° (V)
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

  • Obstacle Sensing Range

  • 0.1 to 10 m
  • FOV

  • 30°
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

  • Capacity

  • 5880 mAh
  • Voltage

  • 26.1 V
  • Battery Type

  • Li-ion 6S
  • Energy

  • 131.6 Wh
  • Net Weight

  • Approx. 685 g
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature

  • 20° to 30° C (68° to 86° F)
  • Charging Temperature

  • -20° to 40° C (-4° to 104° F)
    (When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  • Chemical System

  • LiNiMnCoO2

Auxiliary Lights

  • Effective Illumination Distance

  • 5 m
  • Illumination Type

  • 60 Hz, solid glow

Remote Controller

  • Screen

  • 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
  • Internal Battery

  • Type: Li-ion (6500 mAh @ 7.2 V)
    Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
    Charge Time: 2 hours
    Chemical System: LiNiCoAIO2
  • External Battery(WB37 Intelligent Battery)

  • Capacity: 4920 mAh
    Voltage: 7.6 V
    Battery Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2
  • Operating Time[5]

  • Internal Battery: Approx. 3 hours 18 min
    Internal Battery + External Battery: Approx. 6 hours
  • Ingress Protection Rating[3]

  • IP54
  • GNSS

  • GPS+Galileo+BeiDou
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

O3 Enterprise

  • Operating Frequency[1]

  • 2.4000-2.4835 GHz, 5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference)

  • 15 km (FCC); 8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference)

  • Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
    Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)
  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

  • Protocol

  • Wi-Fi 6
  • Operating Frequency[1]

  • 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
    5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
    5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

  • Protocol

  • Bluetooth 5.1
  • Operating Frequency

  • 2.4000-2.4835 GHz
  • Transmitter Power (EIRP)

  • <10 dBm

BS30 Intelligent Battery Station

  • Dimensions

  • 353×267×148 mm
  • Net Weight

  • 3.95 kg
  • Compatible Battery Type

  • TB30 Intelligent Flight Battery
    WB37 Intelligent Battery
  • Input

  • 100-240 VAC, 50/60 Hz
  • Output

  • TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
    WB37 Intelligent Battery: 8.7 V, 6 A
  • Output Power

  • 525 W
  • USB-C port

  • Max. output power of 65 W
  • USB-A port

  • Max. output power of 10 W (5 V, 2 A)
  • Power Consumption (when not charging battery)

  • < 8 W
  • Output Power (when warming up battery)

  • Approx. 30 W
  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)
  • Ingress Protection Rating[3]

  • IP55 (with the cover closed properly)
  • Charging Time[6]

  • Approx. 30 min (charging two TB30 batteries from 20% to 90%)
    Approx. 50 min (charging two TB30 batteries from 0% to 100%)
  • Protection Features

  • Anti-Backflow Protection
    Short Circuit Protection
    Over Voltage Protection
    Over Current Protection
    Temperature Protection

Other

  • Footnotes

  • [1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.
    [2] The maximum flight time and the hover time were tested in a lab environment and is for reference only.
    [3] This protection rating is not permanent and may reduce over time after long-term use.
    [4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.
    [5] The maximum operating time was tested in a lab environment and is for reference only.
    [6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Guaranteed software updates until

  • 2024/12/31

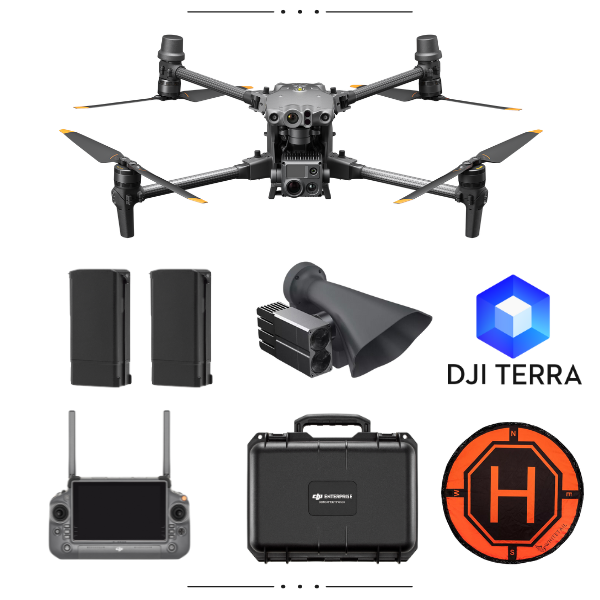

1x DJI Matrice 30T

1x DJI RC Plus

2x TB30 Intelligent Batteries

1x BS60 Batteries Charging Station

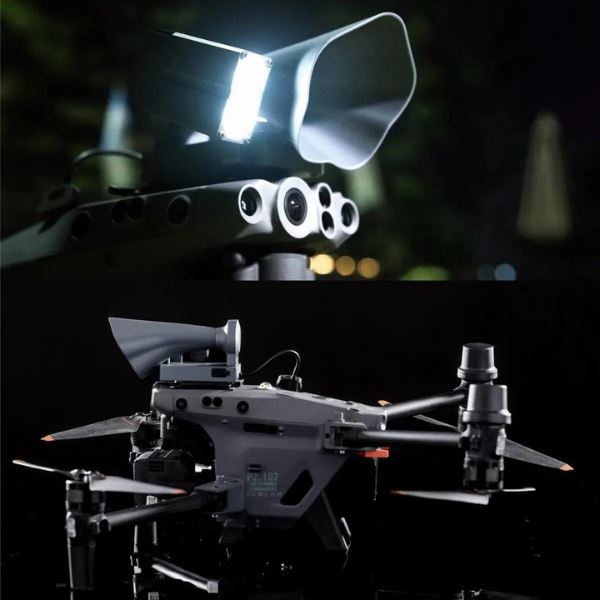

1x Loudspeaker Spotlight 2-in-1 Payload for DJI Matrice 30T Drone

1x DJI Terra Pro ( 1 Year)

1x Drone Landing Pad
