DJI Matrice 350 RTK Search and Rescue Combo: Unleashing Advanced Aerial Capabilities for Life-Saving Missions

In the critical field of search and rescue, every second counts. The DJI Matrice 350 RTK Search and Rescue Combo is engineered to provide first responders with the most advanced aerial capabilities to ensure quick, efficient, and effective rescue missions. Combining state-of-the-art technology with rugged durability, this combo is an indispensable tool for life-saving operations in the most challenging environments.



Superior Aerial Performance

The DJI Matrice 350 RTK is built for exceptional aerial performance, offering unmatched stability and reliability. Its powerful propulsion system and advanced flight control technology enable the drone to operate in harsh conditions, including high winds and extreme temperatures. With a maximum flight time of up to 55 minutes, the Matrice 350 RTK can cover extensive areas in a single flight, providing continuous support during prolonged search and rescue missions.



High-Precision RTK Technology

Equipped with Real-Time Kinematic (RTK) technology, the Matrice 350 RTK delivers centimeter-level positioning accuracy. This precision is critical for locating missing persons and mapping out search areas with exceptional detail. The RTK module ensures that the drone can navigate accurately, even in GPS-denied environments, enhancing the overall efficiency of the search operation.



Advanced Imaging Capabilities

The Matrice 350 RTK Search and Rescue Combo includes the Zenmuse H20T, a multi-sensor payload that offers unparalleled imaging capabilities. This payload features a 20MP zoom camera, a 12MP wide camera, a radiometric thermal camera, and a laser rangefinder. The combination of these sensors allows for comprehensive situational awareness, enabling rescuers to detect heat signatures, identify hazards, and locate individuals in challenging conditions, such as dense forests or collapsed structures.



Enhanced Safety Features

Safety is paramount in search and rescue missions, and the Matrice 350 RTK is designed with multiple redundancies to ensure reliable operation. The drone includes dual batteries, dual transmission links, and sensor redundancies, providing continuous operation even in the event of a system failure. The integrated ADS-B receiver offers real-time alerts of nearby manned aircraft, enhancing situational awareness and operational safety.



Seamless Integration with DJI Terra

The Matrice 350 RTK seamlessly integrates with DJI Terra software, streamlining the entire mission workflow from planning to data analysis. DJI Terra offers advanced features such as automated flight routes, real-time data visualization, and precise georeferencing, ensuring that search and rescue teams have access to accurate and up-to-date information. This integration simplifies the process of creating detailed maps and models, aiding in the coordination and execution of rescue efforts.



Versatility Across Rescue Operations

The Matrice 350 RTK Search and Rescue Combo is a versatile tool suitable for a wide range of rescue operations. Whether it’s locating missing persons, assessing natural disaster impacts, or supporting firefighting efforts, this combo provides the necessary tools to respond quickly and effectively. Its adaptability makes it an invaluable asset for first responders, emergency services, and disaster management teams.



Comprehensive Search and Rescue Package

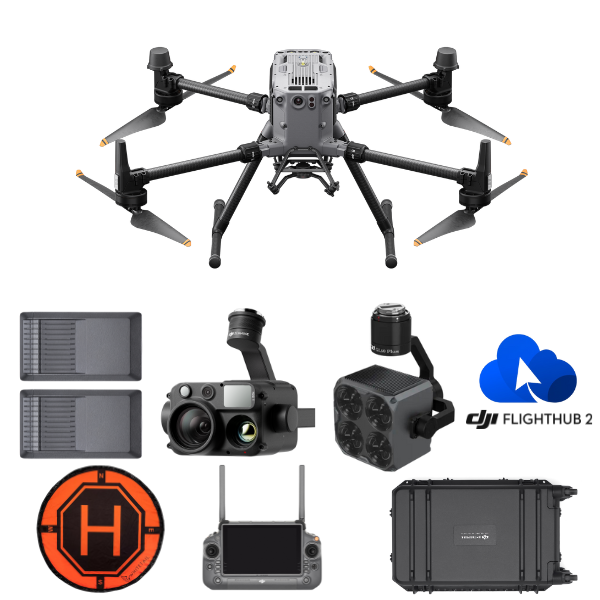

The DJI Matrice 350 RTK Search and Rescue Combo includes:

DJI Matrice 350 RTK drone

Zenmuse H30T multi-sensor payload

CZI Search Light

Intelligent Flight Batteries for extended missions

DJI FlightHub 2 software

Additional accessories for enhanced functionality



Conclusion

The DJI Matrice 350 RTK Search and Rescue Combo is a game-changing tool for emergency responders, providing advanced aerial capabilities to enhance the effectiveness and efficiency of rescue missions. Its superior performance, high-precision technology, and comprehensive imaging capabilities make it an indispensable asset in critical life-saving operations.



For more information and to equip your team with the best in search and rescue technology, contact Aerosmart UAV, the official DJI Enterprise dealer in Dubai, UAE, at +971501576093 today!

Aircraft

  • Dimensions (unfolded, without propellers)

  • 810×670×430 mm (L×W×H)
  • Dimensions (folded, with propellers)

  • 430×420×430 mm (L×W×H)
  • Diagonal Wheelbase

  • 895 mm
  • Weight (with single downward gimbal)

  • Without batteries:
    Approx. 3.77 kg

    With two TB65 batteries:
    Approx. 6.47 kg
  • Single Gimbal Damper’s Max Payload

  • 960 g
  • Max Takeoff Weight

  • 9.2 kg
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz

    In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.150-5.250 GHz (CE: 5.170-5.250 GHz):
    < 23 dBm (CE)

    5.725-5.850 GHz:
    < 33 dBm (FCC/SRRC)
    < 14 dBm (CE)
  • Hovering Accuracy (with moderate or no wind)

  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±1.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)
  • RTK Positioning Accuracy (RTK FIX)

  • 1 cm + 1 ppm (horizontal)
    1.5 cm + 1 ppm (vertical)
  • Max Angular Velocity

  • Pitch: 300°/s
    Yaw: 100°/s
  • Max Pitch Angle

  • 30°
    When in N mode and with the forward vision system enabled: 25°.
  • Max Ascent Speed

  • 6 m/s
  • Max Descent Speed (vertical)

  • 5 m/s
  • Max Tilted Descent Speed

  • 7 m/s
  • Max Horizontal Speed

  • 23 m/s
  • Max Flight Altitude

  • 5000 m
    When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.

    7000 m
    When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.
  • Max Wind Speed Resistance

  • 12 m/s
  • Max Flight Time

  • 55 minutes
    Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
  • Supported DJI Gimbals

  • Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, and Zenmuse P1
  • Third-Party Payload

  • Supports only certified payloads developed based on DJI Payload SDK.
  • Supported Gimbal Configurations

  • Single downward gimbal
    Single upward gimbal
    Dual downward gimbals
    Single downward gimbal + single upward gimbal
    Dual downward gimbals + single upward gimbal
  • Ingress Protection Rating

  • IP55
    The IP rating is not permanently effective and may decrease due to product wear and tear.
  • Global Navigation Satellite System

  • GPS + GLONASS + BeiDou + Galileo
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Class

  • C3 (EU)

Remote Controller

  • Screen

  • 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
  • Weight

  • Approx. 1.25 kg (without WB37 battery)
    Approx. 1.42 kg (with WB37 battery)
  • Global Navigation Satellite System

  • GPS + Galileo + BeiDou
  • Built-in Battery

  • Type: Li-ion (6500 mAh@7.2 V)
    Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
    Charging Time: 2 hours
    Chemical System: LiNiCoAlO2
  • External Battery (WB37 Intelligent Battery)

  • Capacity: 4920 mAh
    Voltage: 7.6 V
    Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2
  • Ingress Protection Rating

  • IP54
  • Operating Time

  • Built-in Battery: approx. 3.3 hours
    Built-in Battery + External Battery: approx. 6 hours
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    < 33 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)
  • Wi-Fi Protocol

  • Wi-Fi 6
  • Wi-Fi Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
  • Bluetooth Protocol

  • Bluetooth 5.1
  • Bluetooth Operating Frequency

  • 2.4000-2.4835 GHz

Video Transmission

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Antenna

  • 4 video transmission antennas, 2T4R
  • Max Transmission Distance (unobstructed, free of interference)

  • 20 km (FCC)
    8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference)

  • Low Interference and Obstructed by Buildings: approx. 0-0.5 km
    Low Interference and Obstructed by Trees: approx. 0.5-3 km
    Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
    Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
    Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

    Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.

Vision System

  • Obstacle Sensing Range

  • Forward/Backward/Left/Right: 0.7-40 m
    Upward/Downward: 0.6-30 m
  • FOV

  • Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
    Left/Right/Upward: 75° (horizontal), 60° (vertical)
  • Operating Environment

  • Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

  • Obstacle Sensing Range

  • 0.1-8 m
  • FOV

  • 30° (±15°)
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

  • Effective Illumination Distance

  • 5 m
  • Illumination Type

  • 60 Hz, solid glow

FPV Camera

  • Resolution

  • 1080p
  • FOV

  • 142°
  • Frame Rate

  • 30fps

Intelligent Flight Battery

  • Model

  • TB65
  • Capacity

  • 5880 mAh
  • Voltage

  • 44.76 V
  • Type

  • Li-ion
  • Energy

  • 263.2 Wh
  • Weight

  • Approx. 1.35 kg
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Ideal Storage Temperature

  • 22° to 30° C (71.6° to 86° F)
  • Charging Temperature

  • -20° to 40° C (-4° to 104° F)
    When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
  • Charging Time

  • With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
    With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Intelligent Battery Station

  • Dimensions

  • 580×358×254 mm (L×W×H)
  • Net Weight

  • Approx. 8.98 kg
  • Compatible Stored Items

  • Eight TB65 Intelligent Flight Batteries
    Four WB37 Intelligent Batteries
  • Input Voltage

  • 100-120 VAC, 50-60 Hz
    220-240 VAC, 50-60 Hz
  • Max Input Power

  • 1070 W
  • Output Power

  • 100-120 V: 750 W
    220-240 V: 992 W
  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Footnotes

  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Others

  • Guaranteed software updates until

  • 2025/12/31
  • 1x DJI Matrice 350 Aircraft Body
  • 1x DJI RC Plus
  • 8x TB65 Intelligent Flight Battery
  • 1x Zenmuse H30T Optical Zoom / Thermal Camera
  • 1x CZI GL60 Plus
  • 1x BS65 Intelligent Battery Station
  • 1x Matrice 350 Dual gimbal module
  • 2x Smart Controller Enterprise Monitor Mounting Kit
  • 2x Mobile Device Holder
  • 1x Drone Landing Pad
  • 1x USB Charger
  • 1x USB-C Cable
  • 4x (Total) WB37 Intelligent Battery
  • 2x 2110 Propeller (CW)
  • 2x 2110 Propeller (CCW)
  • 4x Spare Gimbal Damper
  • 1x USB Cable with Double A Ports
  • 1x Vision System Calibration Plate
  • 1x Carrying Case
  • 1x Smart Cotroller Lanyard
  • 1x Rubber Port Cover Set
  • 1x BS65 Power Cable
  • Screws & tools
