The DJI AL1 Spotlight is a high-performance illumination accessory designed specifically for the DJI Matrice 4 Series, enabling enhanced visibility during night operations, inspections, public safety, and emergency response missions. It provides powerful, focused lighting to support accurate observation and safer flight operations in low-light or no-light environments.

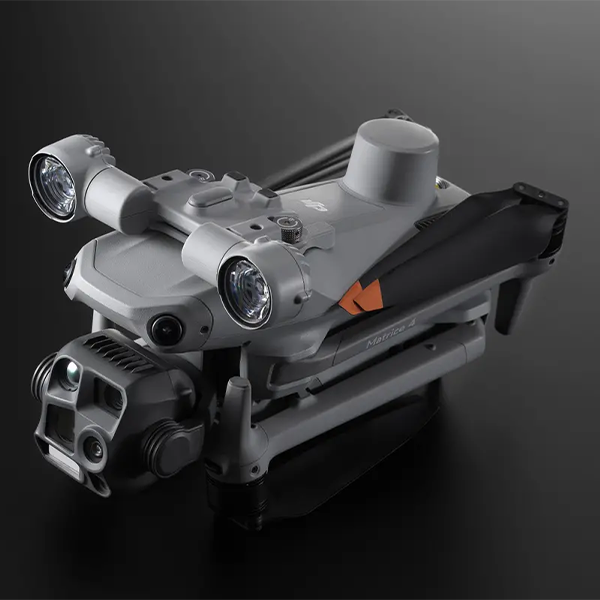

Engineered for seamless integration, the AL1 Spotlight works in coordination with the drone’s gimbal and camera system, ensuring synchronized illumination of the target area. This allows operators to clearly identify objects, structures, and terrain during nighttime inspections, search and rescue, and security patrols.
Built to meet enterprise operational demands, the DJI AL1 Spotlight enhances mission effectiveness, improves situational awareness, and expands the operational capabilities of the DJI Matrice 4 Series in challenging lighting conditions.
Weight: 99 g (including bracket)
Approx. 91 g (excluding bracket)
95×164×30 mm (L×W×H, including bracket)
79×164×28 mm (L×W×H, without bracket)
Max Power: 32 W
Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
Effective Illumination Angle: 23°(10% relative illuminance)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
2,200 square meters @ 100 meters (10% relative illuminance, Wide fov Mode)
Modes: Always-on and strobe
Gimbal Mechanical Range (Tilt): -140° to 50°
Gimbal Controllable Range (Tilt): -90° to 35°
Max Control Speed (tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature: -4° to 122° F (-20° to 50° C)
Mounting Method: Quick-release hand-tightened screws
Spotlight × 1
Spare Screw × 2
Hex Key × 1
