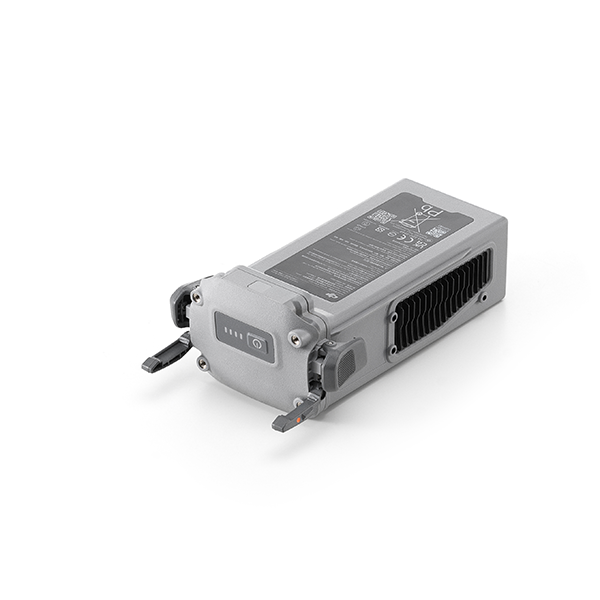

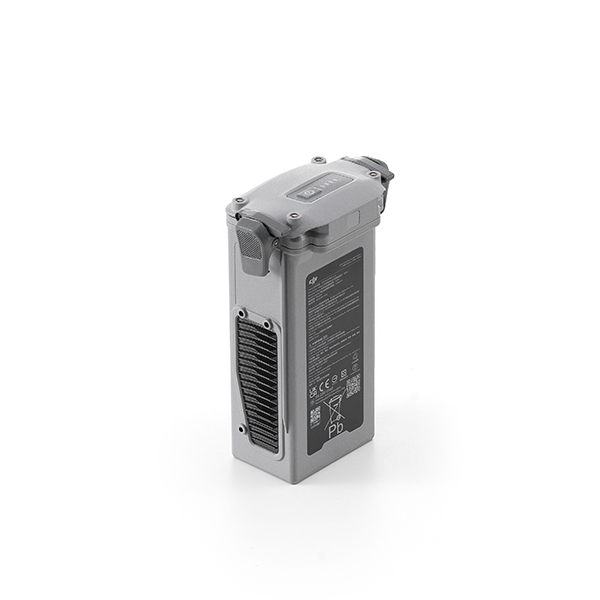

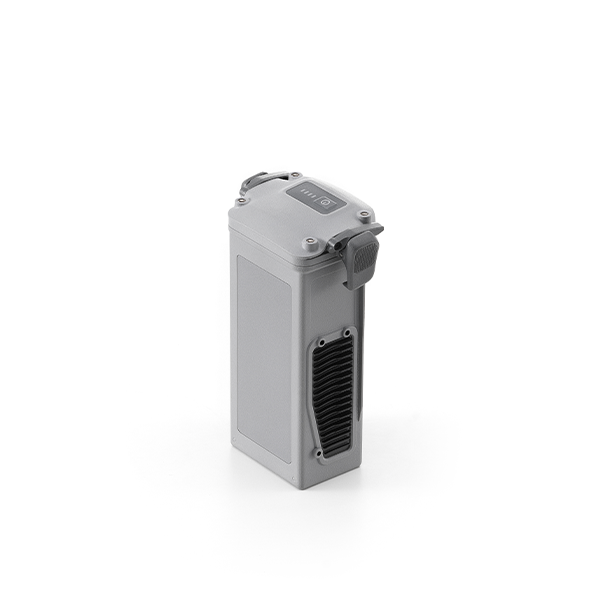

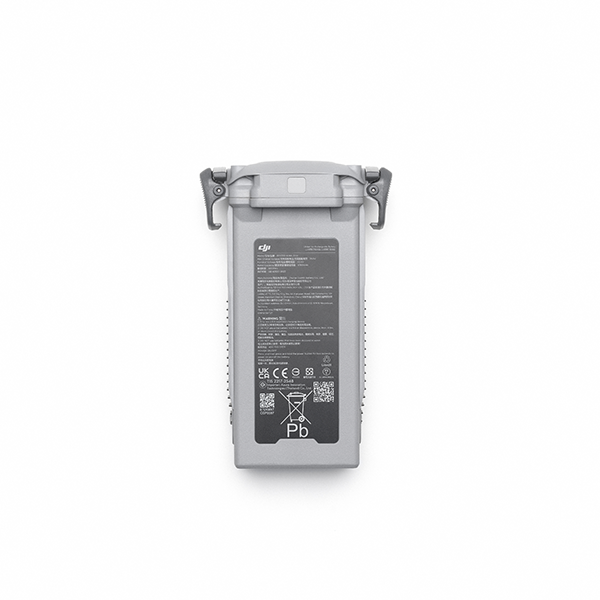

DJI Matrice 4D Series Battery (for Dock 3)

The DJI Matrice 4D Series Battery is a high-performance, intelligent power solution purpose-built for the DJI Matrice 4D and 4TD drones, seamlessly integrating with the DJI Dock 3 system. Engineered for mission-critical operations, this battery delivers extended flight times, rapid charging capabilities, and intelligent energy management to support continuous automated drone missions in enterprise environments.

Whether used for industrial inspections, infrastructure monitoring, public safety operations, or autonomous patrols, this battery ensures dependable performance in the most demanding conditions.

High Capacity and Long Flight Endurance

Equipped with a powerful 6768 mAh capacity and 149.9 Wh of stored energy, the Matrice 4D Series Battery enables flight durations of up to 54 minutes. This ensures longer operational windows for surveying, search and rescue, emergency response, and mapping, reducing downtime and increasing mission efficiency.

Its intelligent design provides precise power management, extending drone usability even during extended deployments. The high-capacity power delivery ensures stable output even under high-load payload conditions, making it ideal for dual-sensor missions and heavy-lift applications.

Optimized Charging and Battery Lifecycle

This battery supports fast charging at up to 1.8C, significantly reducing downtime between missions. It offers two smart charging modes: “Ready-to-Fly” (charging up to 90%) for quick deployment readiness and “Standard” (charging to 100%) for full capacity missions.

Thanks to intelligent battery health monitoring, users benefit from optimized power cycles, helping extend the battery lifespan up to 400 cycles under ideal conditions. The intelligent management system continuously monitors voltage, current, and temperature for safe operation.

Rugged Design for All-Weather Reliability

The Matrice 4D Series Battery is built to withstand the challenges of real-world environments. With its robust design and integrated self-heating function, it remains functional in temperatures as low as -20°C and up to 50°C. It supports charging in ambient temperatures ranging from 5°C to 45°C, making it ideal for operations in extreme heat or cold.

With a total weight of approximately 640 grams, the battery maintains a compact and manageable profile without compromising power or efficiency.

Intelligent Integration with DJI Dock 3

When used with the DJI Dock 3, the Matrice 4D Series Battery allows drones to perform fully autonomous operations with automatic recharging and redeployment. It is hot-swappable, enabling continuous drone uptime without the need for manual intervention.

This combination of endurance, intelligent charging, and autonomous readiness makes the Matrice 4D Series Battery a vital component for scalable, always-on drone workflows in critical sectors.
