General

• Product Name

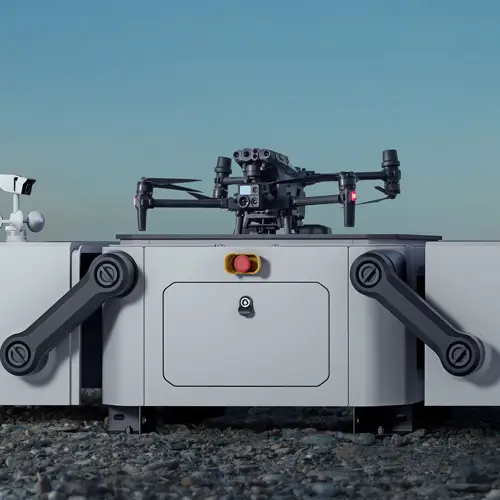

• DJI Dock

• Total Weight

• 105 kg (not including aircraft weight)

• Dimensions

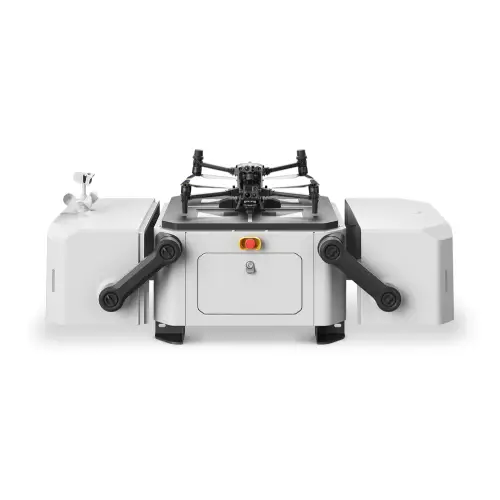

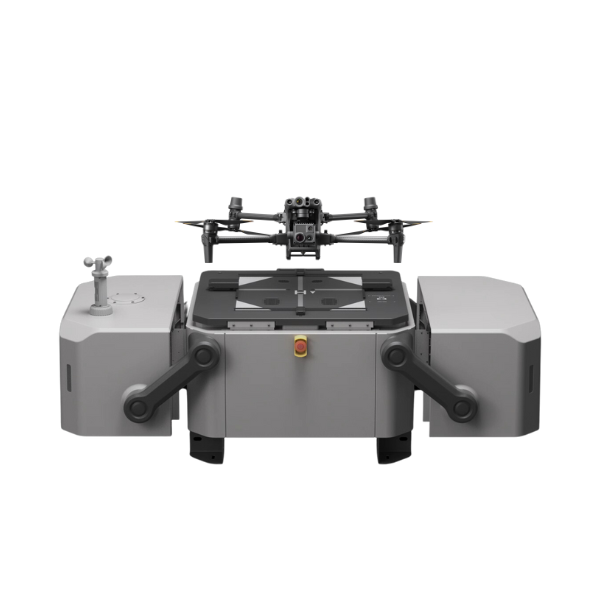

• Dock Cover Opened: 1675×885×735 mm (L×W×H)
  Dock Cover Closed: 800×885×1065 mm (L×W×H)

• Input Voltage

• 100-240 VAC, 50/60 Hz

• Max Input Power

• 1,500 W

• Operating Temperature

• -35 to 50° C (-31 to 122° F)

• Ingress Protection Rating

• IP55

• Number of Drones Accommodated

• 1

• Max Allowable Landing Wind Speed

• 12 m/s

• Max Operating Altitude

• 4,000 m

• Max Operating Radius

• 7,000 m

• Receiving Frequency of RTK Base Station Satellite

• Simultaneously receive:
  GPS: L1 C/A, L2
  BeiDou2: B1l, B2l, B3l
  BeiDou3:B1l, B3l
  GLONASS:L1, L2
  Galileo: E1, E5B

• Positioning Accuracy of RTK Base Station

• Horizontal: 1 cm+1 ppm (RMS)
  Vertical: 2 cm+1 ppm (RMS)

Charging Performance

• Output Voltage

• 18 to 26.1 V

• Charging Time

• 25 minutes
  Note: This is if the ambient temperature is 25°C (77° F), and the aircraft is charged from 10% to 90%.

Video Transmission

• Video Transmission System

• O3 Enterprise

• Operating Frequency

• 2.4000-2.4835 GHz
  5.725-5.850 GHz

• Antennas

• 4 antennas, 2T4R

• Transmitter Power (EIRP)

• 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
  5.8 GHz： <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Air Conditioning System

• Operating Voltage

• 48 VDC

• Air Conditioning Type

• TEC Air Conditioning

Backup Battery

• Battery Capacity

• 12 Ah

• Output Voltage

• 24 V

• Battery Type

• Lead-acid Battery

• Backup Battery Life

• > 5 hours

Network Access

• Ethernet Access

• 10/100/1000Mbps Adaptive Ethernet port

Sensor

• Wind Speed Sensor

• Supported

• Rainfall Sensor

• Supported

• Ambient Temperature Sensor

• Supported

• Water Immersion Sensor

• Supported

• In-cabin Temperature Sensor

• Supported

• In-cabin Humidity Sensor

• Supported

• Vibration Sensor

• Supported

Integrated Security Camera (On Cover)

• Resolution

• 1920×1080

• Field of View (FOV)

• 180°

• Auxiliary Light

• Supported, Auxiliary White Light

Lightning Protection

• AC Power Port

• 40 kA (8/20μs waveform), meets EN/IEC 61643-11 TYPE 2 protection level requirements

• Ethernet Port

• 1.5 kA (8/20μs waveform), meets EN/IEC 61643-21 CATEGORY C protection level requirements

Supported Software

• Applications

• DJI Pilot 2 (connects to DJI Dock via DJI RC Plus for configuration and commissioning)

• Cloud Platform

• DJI FlightHub 2
  3rd Party Platforms through DJI Cloud API

Expansion Capability

• Open Protocol

• DJI Cloud API

• Edge Computing

• DJI Dock provides internal power supply, data interface, and space for equipment installation.Edge computing will be supported in Q2, 2023.

Others

• Guaranteed software updates until

• 2024/12/31
