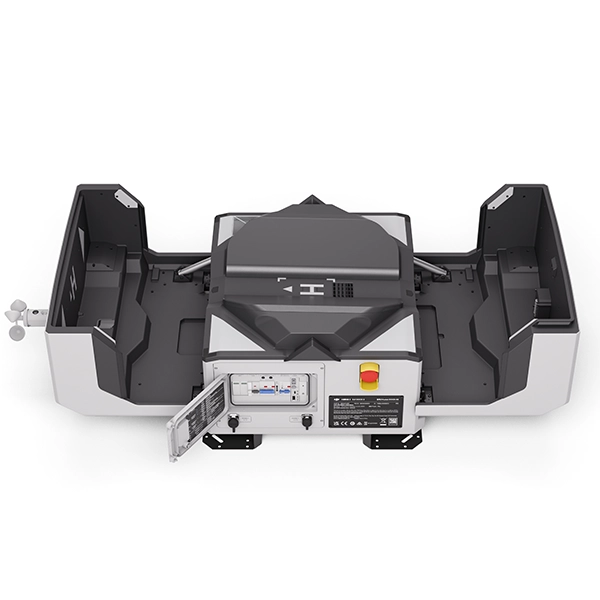

DJI Dock 2
Easy Operation, Superior Results
DJI Dock 2 is the latest and advanced autonomous drone in a box solution from DJI with lots of advanced features and capabilities to manage large scale industrial projects. DJI Dock 2 is light weight and built for extreme weather conditions making it easier to set up in any environment. DJI Dock 2 offers a cutting-edge solution for various industries where autonomous surveillance is required like Border patrol, Asset monitoring, public safety, oil and gas, Search and rescue, Mining as well construction progress monitoring. DJI Dock 2 can be integrated with different third-party hardware and software. DJI Dock 2 equipped with a weather sensor to evaluate the different weather conditions like rainfall, windspeed, temperature etc.
DJI Dock 2 is helping different industries to fully automate the drone operations to get actionable data on time to take important decision 24/7. this will help industries to reduce downtime, help victims to support on time by the civil defense team for various emergency situations.
- Simple and quick to deploy
- IP55 Ingress Protection
- 10km Max Operating Range
- Integrated Environment Monitoring System
- Cloud Based Modeling
- FlyTo Tasks
- Private Deployment
- Third Party Payloads

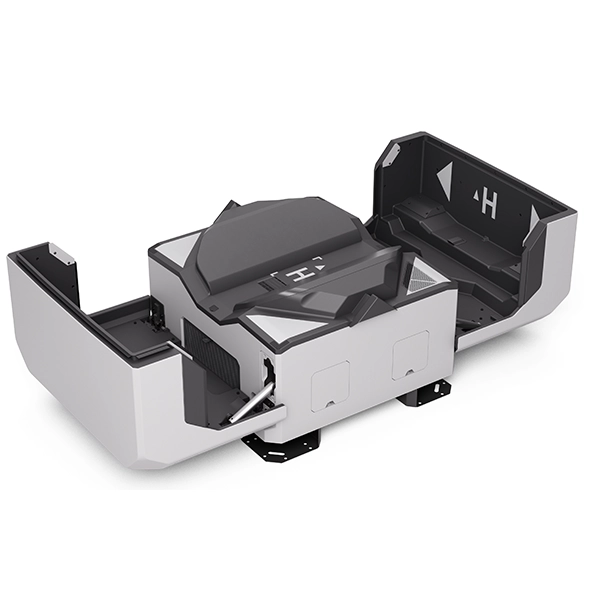

Lightweight Design
DJI Dock 2 is not only an upgraded version of first-generation but also serves a greater range due to the mounting condition, with features that include reduction in weight and dimension up to 68% lighter and 75 % or smaller respectively; requires just two people for transportation allowing fast deployment at any location leading down installation cost.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.
- IP55 Dust and Water Ingress Protection: The Dock 2 is designed with protection in mind. Conforming to the IP55 standard for dust and water resistance, Dock 2 can safely work long hours even in harsh climates with inhospitable environments.

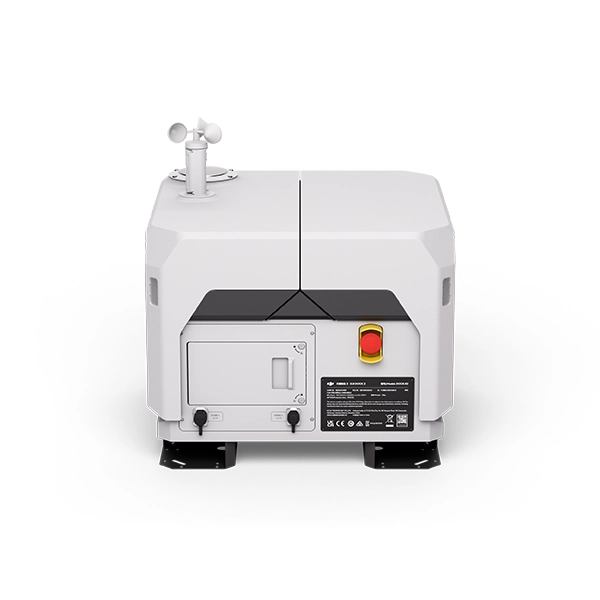

- Integrated Environmental Monitoring System: DJI Dock 2 incorporates and supports multiple sensors such as rain, wind speed & temperature, etc., in observing environment for its users. It will enable timely warnings or terminate flight tasks using DJI FlightHub 2 in combination with online weather forecasting to greatly decrease the risk of operation.
- Increased Landing Stability: The aircraft uses next-gen image recognition to accurately read positioning markers on the landing pad. Also, a new slide-ramp centering design makes the landings even more accurate on the landing pad.
- Onboard Backup-Battery: DJI DOCK 2 has a backup battery inside and can still work independently more than five hours when the power is lost unexpectedly, allowing enough time for aircraft to comeback landing.
- DJI Dock 2 can be maintained at a six-month interval: high-level protection and reliability of this product reduces the need for human resources.
- Abnormal Condition Notifications: DJI FlightHub 2 will send e-mail notifications to administrators in case of task failures or emergencies. Operators can successfully follow metrics and debug thanks to this information on dashboards.
DJI Matrice 3D
Wide-Angle Camera
- 4/3 CMOS
- 24mm Format Equivalent
- 20MP Effective Pixels
- Mechanical Shutter
Tele Camera
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
DJI Matrice 3TD
Wide-Angle Camera
- 1/1.32-inch CMOS
- 24mm Format Equivalent
- 48MP Effective Pixels
Tele Camera
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
Infrared Camera
- 40mm Format Equivalent
- Normal Mode: 640×512@30fps
- UHR Infrared Image Mode: 1280×1024@30fps
- (With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
- 28x Digital Zoom
Best Performance Overall
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of high-standard operations.
- IP54 Dustproof and Waterproof
- 6-Directional Obstacle Sensing System
- 50 min Max Flight time
- 10 km Max Effective Operating Radius
- Integrated RTK Module ±3cm Positioning Accuracy
- 400 Battery Cycles
Optimal efficiency in constant operation
- Quick Launch: The Dock 2 equipped with two RTK antennas, the aircraft can obtain reliable RTH points and does not need to wait for convergence of RTK data. It also carries out a full propeller check and can be up in the air as soon as 45 seconds after powered on, moving fast once it does go operational.
- Fast Charging: The DJI Dock 2 charges the aircraft from 20% to 90% within only around thirty-two minutes for rapid charging between every mission.
- DJI Dock 2 internal fisheye camera and external projection full-field of vision dual-camera monitoring, real-time display. Both inside and (and at a portable console) right outside the dock, an operator can watch weather conditions, environmental factors such as wind or other nearby flights that could jeopardize the safety of any given airplane attempting to take off from/descend onto it.
Cloud-Based Operation, Maximum Control
- Flight Route Editor: Make full use of high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview the simulated imaging results. This allows easy and quick handling of such operations, makes route planning for flights easier and more accurate.
- AI Spot-Check: Frame a specific area in the 3D model, and the aircraft will automatically compare the area to be captured with the framed area in subsequent automated operations. This actively adjusts the camera's angle to ensure accurate capture of the same area across multiple flights.
- FlyTo Tasks: The FlyTo tasks within DJI FlightHub 2 can automatically plan the best flight path based on high precision 3D models. Special maneuvers take place before an urgent task, but the operator just clicks on the subject and machines find their own way there through safe routes.
- Real Time Flight Controls: Even if DJI Dock 2 is deployed in a remote area, the operator can manipulate flight and gimbal angle over keyboard/mouse via DJIFlightHub or third-party cloud platform.
- Obstacle Bypass: The aircraft will automatically sense obstacles in all directions, so that it can perform automatic flight tasks with a higher success rate through the help of Obstacle Sensing and Automatic obstacle bypass functions.
An Open Ecosystem
- Third-Party Payloads
- Edge Computing
- Private Deployment With Cloud API
- Cloud-to-Cloud Coordination
- DJI TerraAPI
Industry Applications for the DJI Dock 2
The DJI Dock 2 is a new cutting-edge drone station specifically built to serve across multiple industries:
- Public Safety and Emergency Response: Increased situational awareness through rapid deployment of drones for surveillance, search & rescue as well disaster response ensures quick action in critical situations.
-
- Infrastructure Inspection: With the application of software robots, you can simplify routine inspections of infrastructure such as power lines and bridges to increase operational efficiency.
-
- Agriculture: Automate drone missions to monitor crops, analyze fields and collect data faster in support of precision agriculture practices that increase farming efficiency.
-
- Security and Safety: Deliver persistent, automated surveillance of vast areas from the sky for improved safety at industrial sites or borders.
-
- Environmental Monitoring: Monitor changes in the environment, wildlife and conservation areas periodically with automated monitoring systems to aid environmental sustainability.
-
Ready to elevate your operations with DJI Dock 2? Contact Aerosmart at +971501576093 or email sales@aerosmart.ae to learn more or schedule a demo.
Aerosmart UAV is the Official DJI Enterprise Dealer in UAE.
