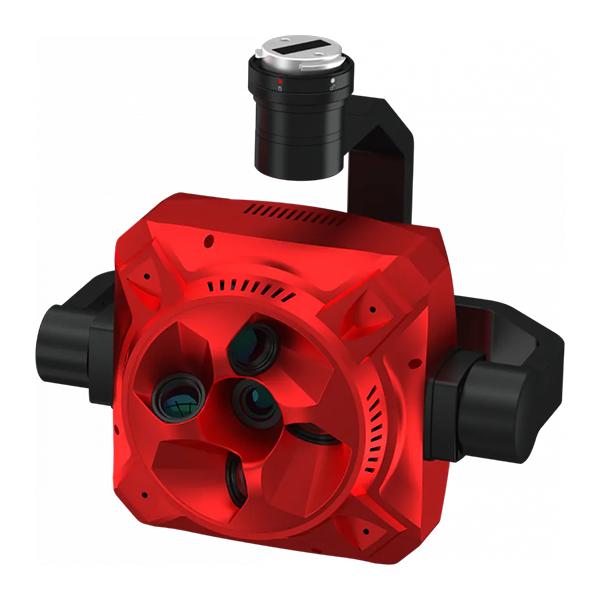

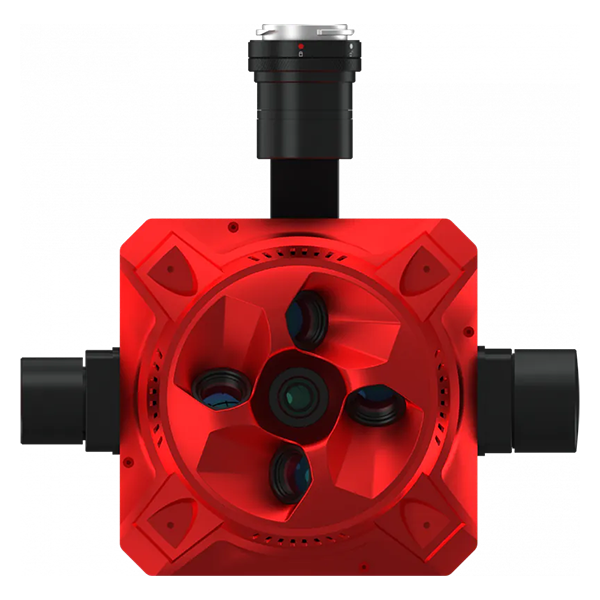

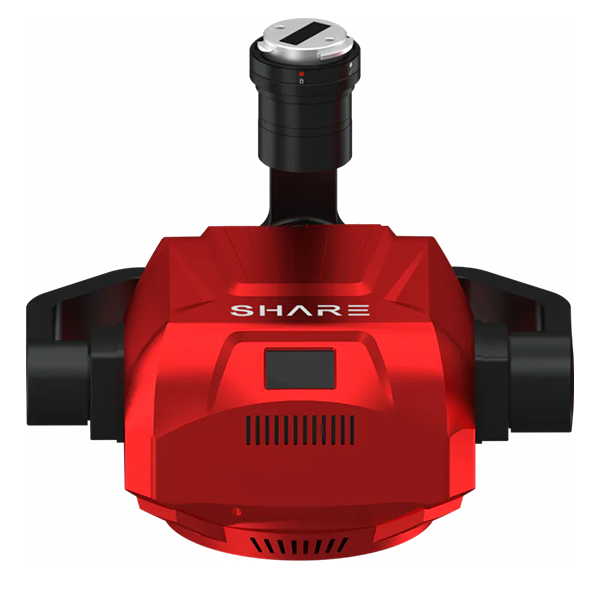

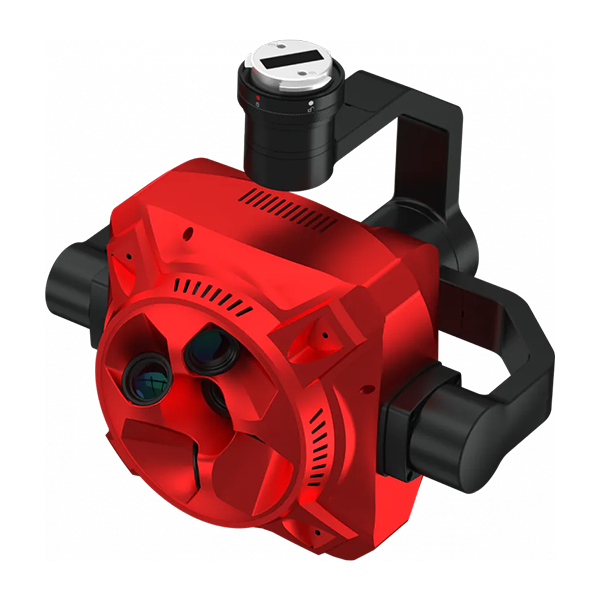

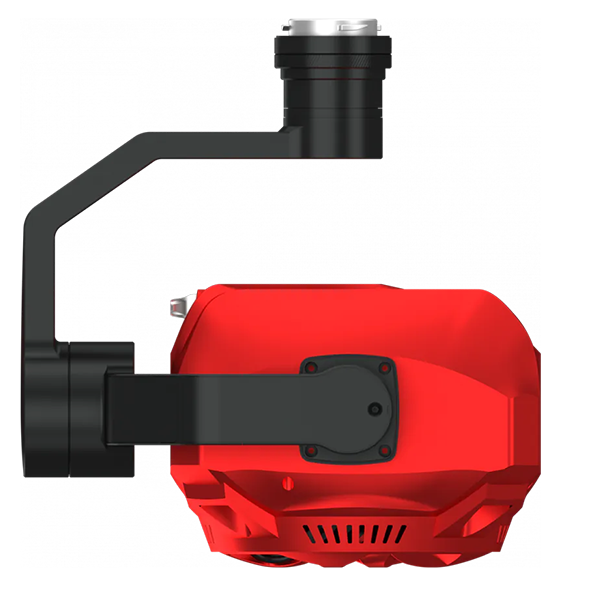

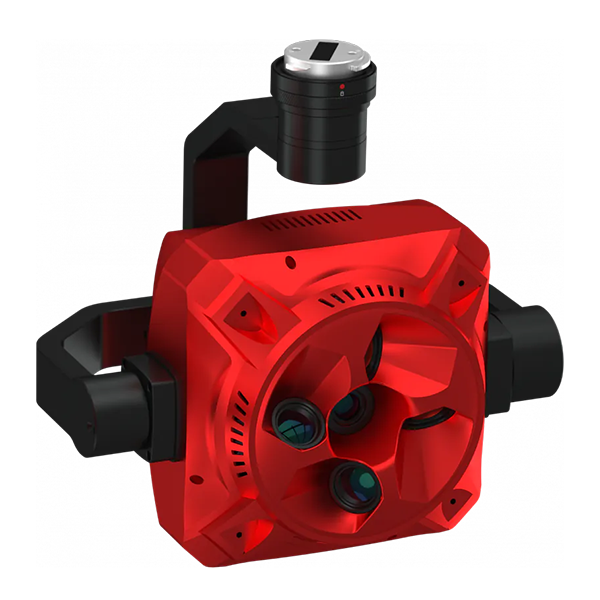

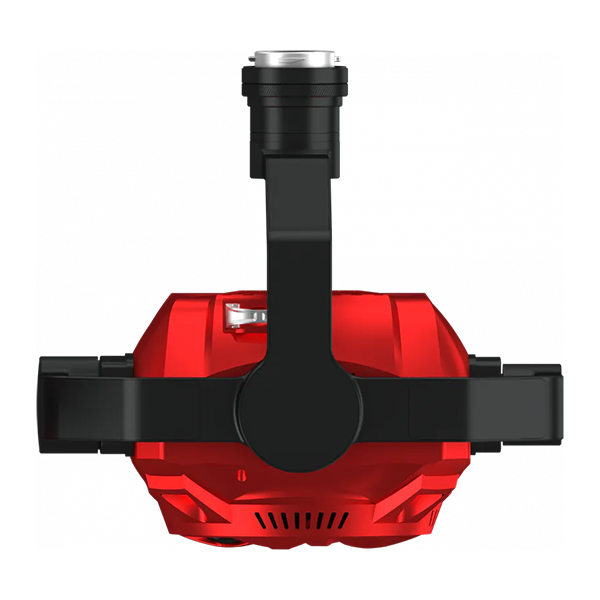

Share 203S Pro
225 MP Five-Lenses Oblique Camera

The first choice for urban high-drop scenes

SHARE 203S PRO has a flight height of 272 meters at the required 3 cm resolution for urban 3D projects, ensuring safety flight height for operations.

The high-efficiency choice for aerial survey of large urban areas

Equipped with aerial plug interface as standard, adaptable to fixed-wing to launch urban large-area data collection. The operating altitude is 454 meters, corresponding 5 cm ground resolution.

Switchable 5-view image transmission monitoring

Monitor the working status of the camera and switchable 5-view image transmission. Automatically adjust the Bitstream based on the distance to ensure visual clarity.

Individual white balance calibration

The 5-view angles perform independent white balance calibration to ensure color accuracy and consistency of photos.

Three-axis gimbal support

SHARE UAV proficiency gimbal technology to maintain stability in pitch, roll and yaw. Operating at 15 m/s, the camera remains perpendicular to the ground.

Real-time offset calculation

The camera is equipped with a built-in position pose offset algorithm, which accurately calculates the position pose to each view during operation and writes the photo in real-time. No post-processing is required.

Intelligent Flight Sortie Management

Each flight sortie data is stored independently. The photos are automatically arranged according to the sortie and perspective naming when collecting data. Data management is easier without the need to rename again.

TimeSync 2.0 Technique

TimeSync 2.0 time synchronization algorithm is incorporated deeply to realize microsecond-level time synchronization of flight control, single-view camera, gimbal and RTk, simultaneous trigger five cameras, instantly calculate high precision POS location and attitude information, greatly improving the precision of GCPs free.

600 Mb/S Data Copying Speed

Users can read the data just by a type-c cable without connecting to the drone. The copying speed of 600 Mb/s makes the workflow more efficient.
