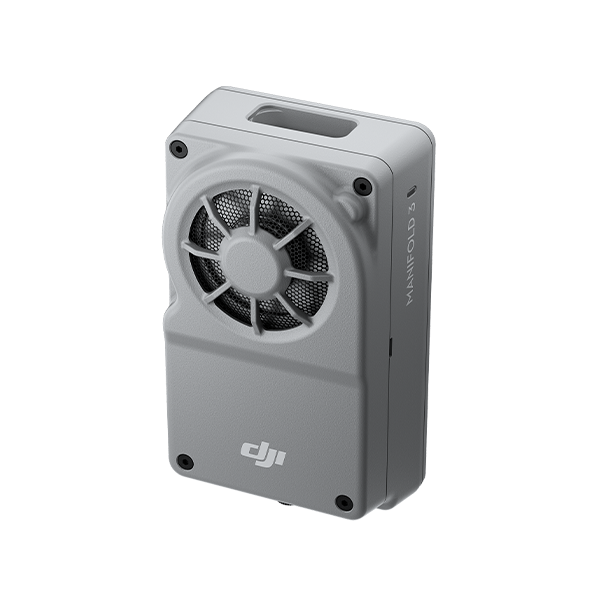

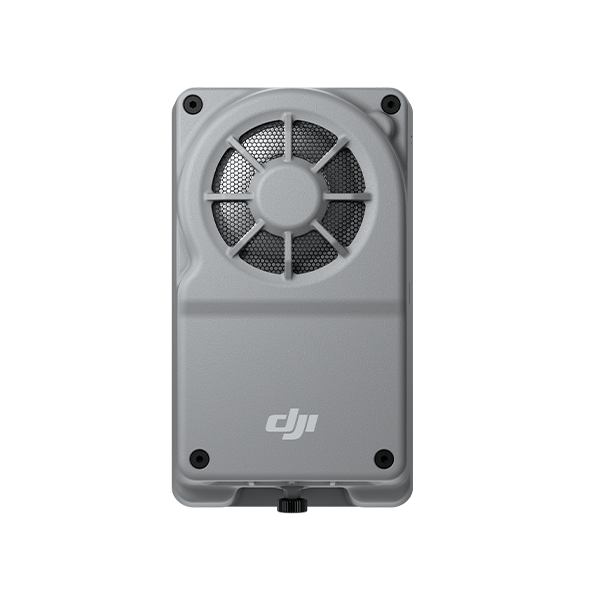

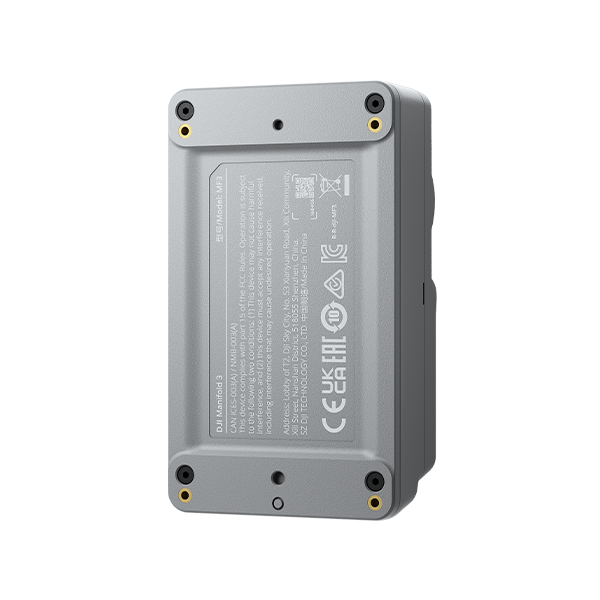

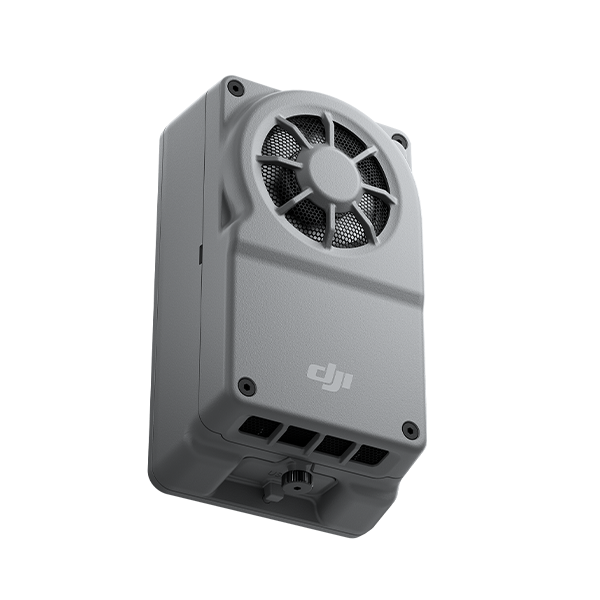

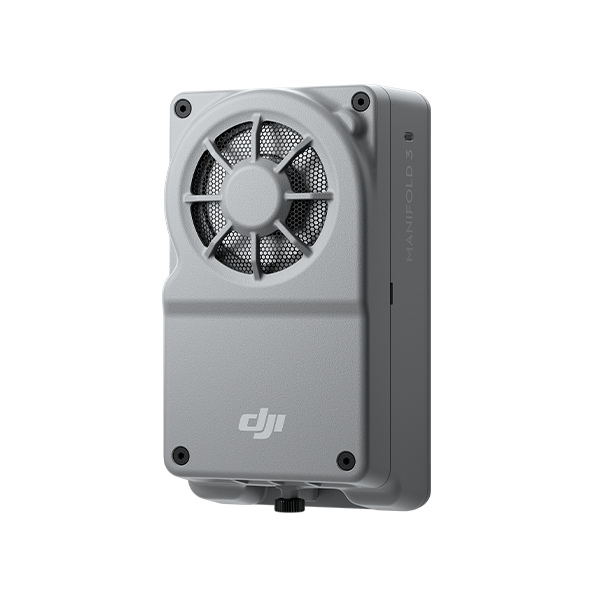

DJI Manifold 3 – High-Performance AI Edge Computing for the Matrice 400 Series

The DJI Manifold 3 is an ultra-compact, AI-powered onboard computer designed specifically for the DJI Matrice 400 Series. Purpose-built for professionals who need real-time processing and intelligent analytics in the field, the Manifold 3 delivers up to 100 TOPS (trillions of operations per second) of AI computing power. Whether used in infrastructure inspection, emergency response, power-line monitoring, or advanced mapping, the Manifold 3 transforms how data is captured and processed mid-flight.

Despite weighing only 120 grams, this advanced module features an NVIDIA Jetson Orin NX processor, 16 GB LPDDR5 RAM, and a 256 GB SSD. Engineered with IP55-rated protection, the Manifold 3 operates reliably in extreme environments—from freezing cold to high-heat missions—making it the ideal solution for enterprise drone operators needing fast, localized AI inference and real-time insights.

Key Features

100 TOPS AI & Vision Processing

The Manifold 3 is powered by the NVIDIA Jetson Orin NX and offers up to 100 TOPS of computing power. This enables high-speed data processing, machine learning, and AI-based object recognition—all performed directly onboard the drone. Operators can deploy advanced applications such as target tracking, anomaly detection, route planning, and sensor data fusion without the need for constant cloud connectivity.

Seamless Integration with Matrice 400

Designed to fit perfectly into the DJI Matrice 400 platform, the Manifold 3 connects through the aircraft’s E-Port V2 (E3 port). It eliminates the need for additional hardware or wiring, allowing for faster integration and deployment in the field.

Real-Time Analytics Onboard

With the ability to process visual and telemetry data in real time, the Manifold 3 empowers users to make split-second decisions. For example, in emergency response or law enforcement operations, object detection, classification, and threat assessments can all be executed without relying on ground processing.

Compact, Lightweight, and Durable

Despite its computing capabilities, the Manifold 3 is ultra-compact, measuring only 98 × 57 × 36 mm and weighing 120 ± 5 grams. Its IP55-rated enclosure protects against dust and water, while a wide operating temperature range (-20°C to 50°C) ensures reliable performance in the harshest mission environments.

Advanced Connectivity & Developer-Friendly Platform

• Supports USB 3.2 Gen 1 via a USB-C port

• Power Delivery (PD) via USB-C allows charging and data transfers

• Compatible with DJI's Payload SDK and Onboard SDK

• Pre-loaded with Ubuntu OS for flexible development

• Supports CUDA, OpenCV, and ROS for AI and robotics projects

Developers can easily install, configure, and deploy machine learning algorithms and custom software applications tailored for mission-specific use cases.

Ideal Applications

• Power-Line & Utility Inspection: Detect anomalies or faults using AI-assisted visual processing

• Public Safety: Track individuals or vehicles in real-time during large-scale surveillance

• Environmental Monitoring: Use AI models to analyze terrain, vegetation, and water bodies

• Infrastructure & Construction: Identify cracks, corrosion, or deformation in real time

• Surveying & Mapping: Run photogrammetry pipelines or LiDAR point cloud classification onboard

Why Choose the DJI Manifold 3?

The DJI Manifold 3 offers enterprise users the ability to leverage powerful computing performance right at the edge. This reduces latency, increases data security, and enables AI tasks to run even in offline scenarios—critical for missions in remote or time-sensitive environments. Its compact form factor, powerful processor, and enterprise-grade build make it one of the most advanced onboard computing solutions in the commercial drone space.
