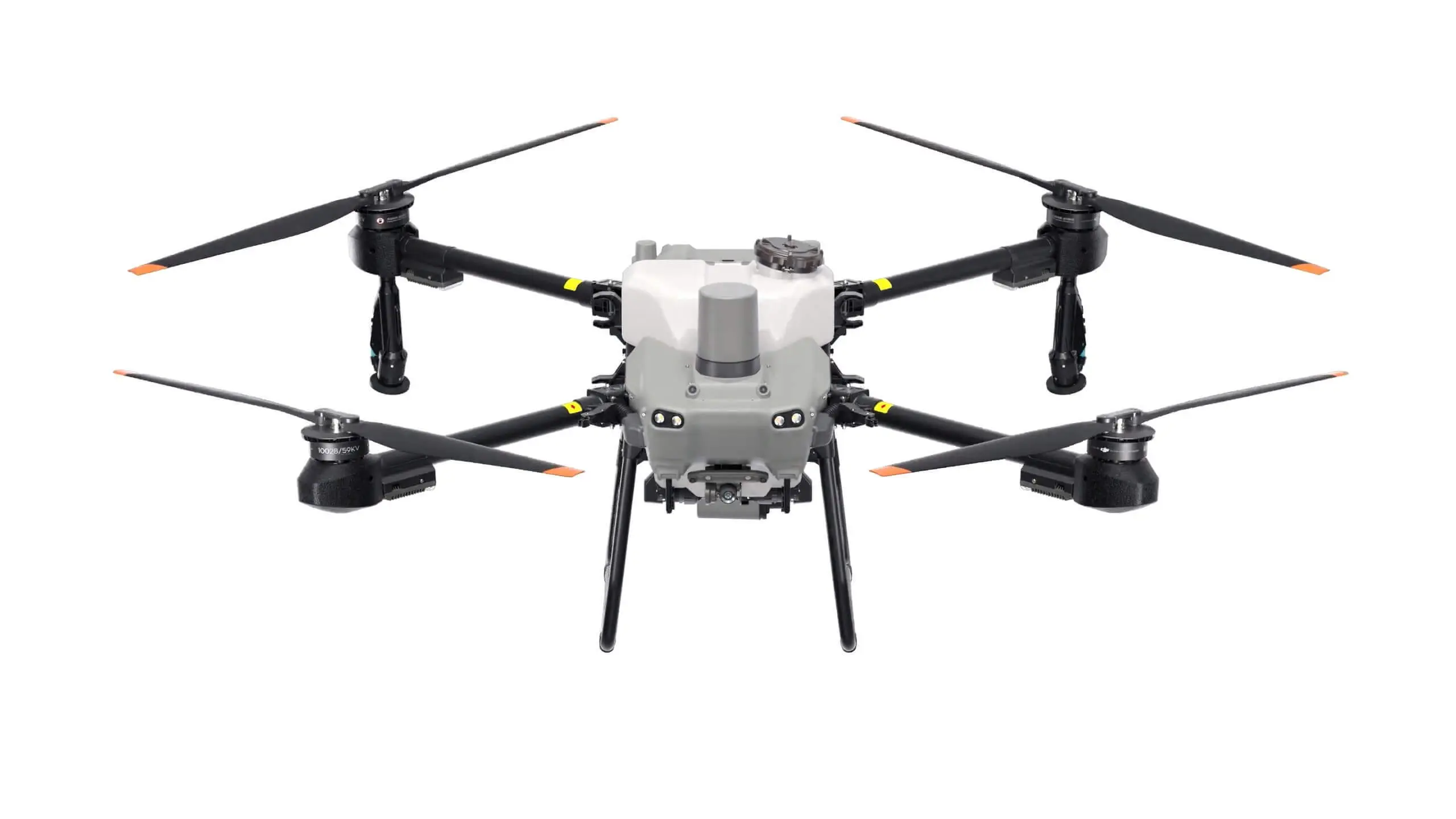

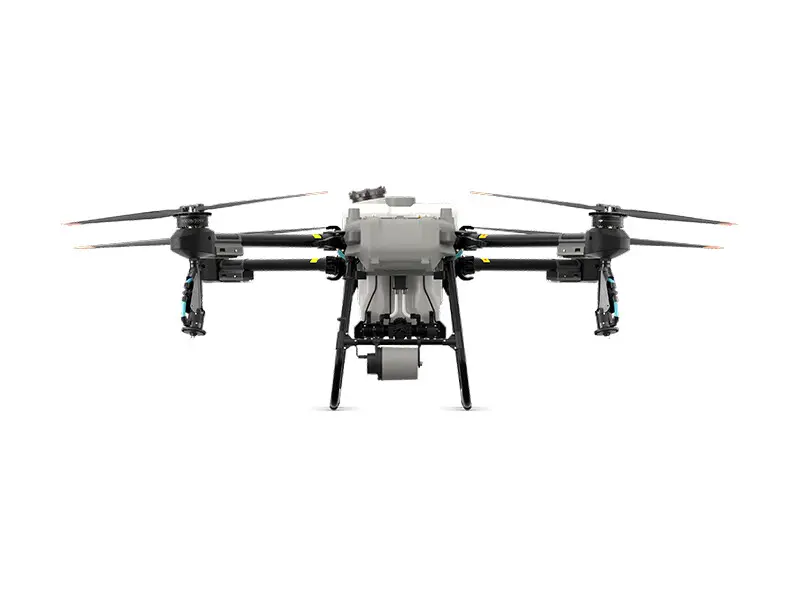

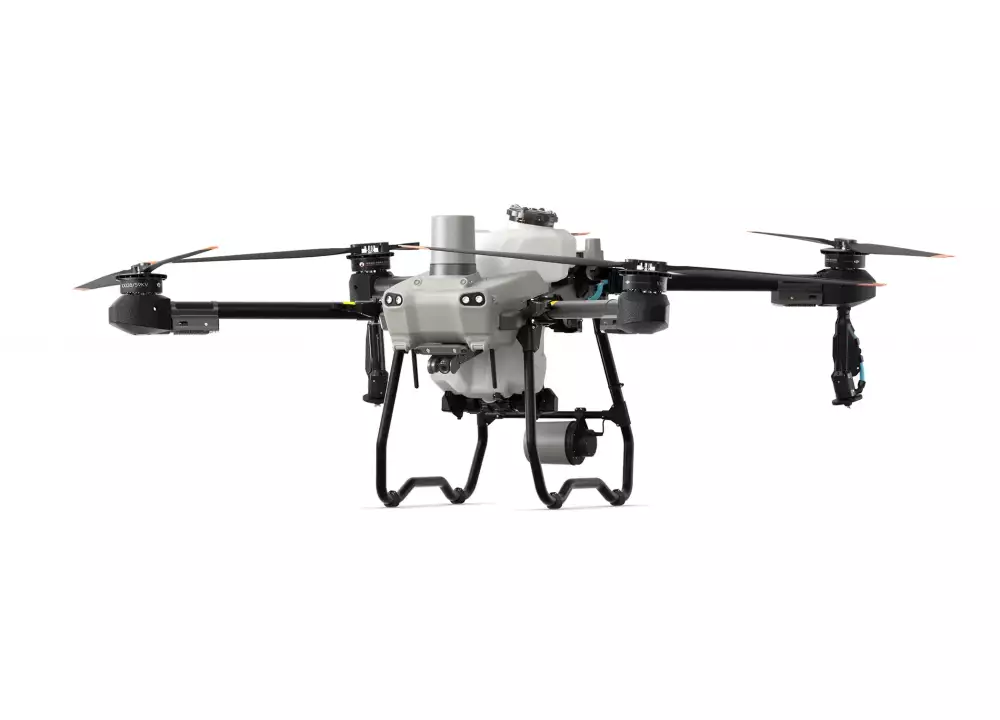

DJI Agras T25

Aircraft

• Weight

• 25.4 kg (excl. battery)
  32 kg (incl. battery)

• Max Takeoff Weight[1]

• Max takeoff weight for spraying: 52 kg (at sea level)
  Max takeoff weight for spreading: 58 kg (at sea level)

• Max Diagonal Wheelbase

• 1925 mm

• Dimensions

• 2585×2675×780 mm (arms and propellers unfolded)
  1475×1540×780 mm (arms unfolded and propellers folded)
  1050×690×820 mm (arms and propellers folded)

• Hovering Accuracy Range (with strong GNSS signal)

• D-RTK enabled:
  Horizontal: ±10 cm, Vertical: ±10 cm
  D-RTK disabled:
  Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

• RTK/GNSSOperating Frequency

• RTK:
  GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
  GNSS:
  GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1

• Max Configurable Flight Radius

• 2000 m

• Max Wind Resistance

• 6 m/s

Propulsion System - Motors

• Stator Size

• 100×28 mm

• KV

• 59 rpm/V

• Power

• 4600 W/rotor

Propulsion System - Propellers

• Material

• Nylon carbon fiber filament

• Dimension

• 50 inch

• Propeller Rotation Diameter

• 1270 mm

• Quantity

• 4

Dual Atomizing Spraying System - Spray Tank

• Material

• Plastic (HDPE)

• Volume

• 20 L

• Operating Payload [1]

• 20 kg[1]

• Quantity

• 1

Dual Atomizing Spraying System - Sprinklers

• Model

• LX8060SZ

• Quantity

• 2

• Nozzle Distance

• 1368 mm（Rear Nozzles）

• Droplet Size

• 50-500 μm

• Effective Spray Width[2]

• 4-7 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

• Type

• Impeller pump (magnetic drive)

• Quantity

• 2

• Single Pump Flow Rate

• 0-12 L/min

• Max Flow Rate

• 16 L/min (2 sprinklers)
  24 L/min (4 sprinklers)

DJI AGRAS T25 Spreading System

• Compatible Material Diameter

• 0.5-5 mm

• Spread Tank Volume

• 35 L

• Spread Tank Internal Load [10]

• 25 kg[1]

• Effective Spraying Width

• Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.

Phased Array Radar System

• Model

• RD241608RF (forward phased array radar)
  RD241608RB (rear phased array radar)

• Terrain Follow

• Max slope in Mountain mode: 20°
  Altitude detection range: 1-50 m
  Stabilization working range: 1.5-30 m

• Obstacle Avoidance[4]

• Obstacle sensing range (omnidirectional): 1-50 m

  FOV:
  Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  Rear phased array radar: vertical 360°, horizontal ±45°
  Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.

  Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)

  Sensing direction: 360° omnidirectional sensing

Binocular Vision System

• Measurement range

• 0.5-29 m

• Effective Sensing Speed

• ≤10 m/s

• FOV

• Horizontal: 90°, Vertical: 106°

• Operating Environment

• Adequate light and discernible surroundings

Remote Controller

• Model

• RM700B

• Operating Frequency[5]

• 2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance

• 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
  (unobstructed, free of interference, and at an altitude of 2.5 m)

• Wi-Fi Protocol

• Wi-Fi 6

• Wi-Fi Operating Frequency [5]

• 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz


• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Operating Frequency

• GNSS

• GPS+Galileo+BeiDou

• Screen

• 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

• Storage Temperature Range

• Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Six months to one year: -30° to 30° C (-22° to 86° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

• 3 hours 18 minutes

• External Battery Runtime

• 2 hours 42 minutes

• Charging Type

• It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

• Charging Time

• 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB800 Intelligent Flight Battery

• Model

• DB800 Intelligent Flight Battery
  (BAX702-30000mAh-52.22V)

• Weight

• Approx. 6.6 kg

• Capacity

• 15000 mAh

• Nominal Voltage

• 52.22 V

D6000i Multifunctional Inverter Generator

• Output Channel

• 1. DC charging output 42-59.92V/9000W
  2. Power supply for air-cooled heat sink 12 V/6 A
  3.AC output 230V/1500W or 120V/750W [8]

• Battery Charging Time

• To fully charge one battery (DB800 battery) takes 9-12 mins

• Fuel Tank Capacity

• 20 L

• Starting Method

• Starting the Generator via the One-Button Start Switch

• Max Power of Engine

• 6000 W

• Fuel Type

• Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

• Reference Fuel Consumption [9]

• 600 ml/kWh

• Engine Oil Model

• SJ10W-40

C8000 Intelligent Charger

• Model Number

• CSX702-9500

• Dimensions

• 400 × 266 × 120 mm

• Weight

• Approx. 11.4 kg

• Input/Output

• Input Voltage: 100-240 VAC
  Output Voltage: 59.92V
  Output Current: 100A max

• Charging Time

• Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)

• Protection Functions

• Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection

• Charging Safety

• AC wire protection, power wire protection, and charge connector protection

Relay

• Model

• RL01-65

• Dimensions

• 120×110×100 mm

• Weight

• ≤575 g

• Input Voltage [6]

• 9 V3 A / 12 V2.5 A / 15 V2 A

• Power Consumption

• 9 W (SRRC), 12 W (FCC)

• Capacity

• 6500 mAh

• Operating Time

• 4 hours

• Operating Frequency [5]

• 2.4000-2.4835 GHz
  5.725-5.850 GHz

• Max Transmission Distance

• 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
  (unobstructed, free of interference, and at a flight altitude of 2.5 m)

• Charging Time

• 2 hours and 20 minutes (when using a standard DJI charger)

• IP Rating [6]

• IP55
