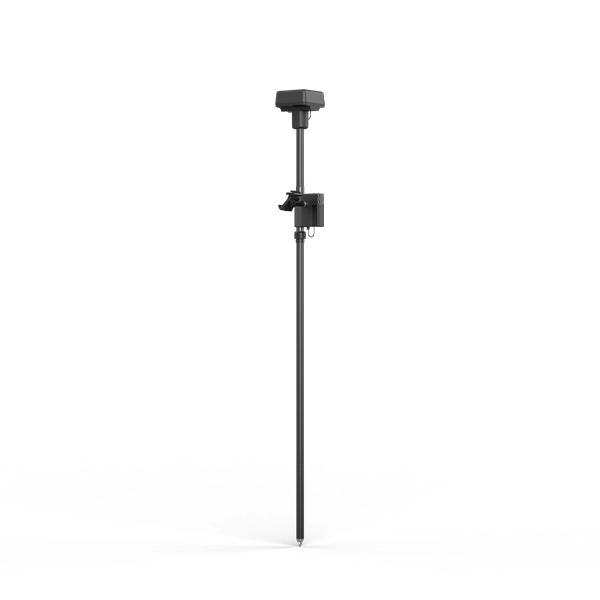

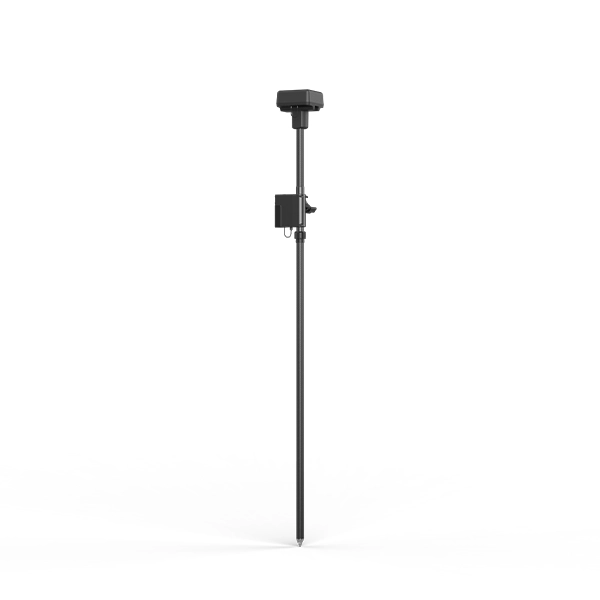

D-RTK 2 GNSS Mobile Station (Vr-Handheld)

(0 reviews)

Inhouse product

Enquire Now

Price
د.إ12,540.00   / Pc
Quantity
(2 available)
Total Price
Share

Enquire Now

D-RTK 2 High Precision
GNSS Mobile Station

OPTIMIZED ACCURACY.
ULTIMATE RELIABILITY.

D-RTK 2 Mobile Station is DJI’s upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections that generate centimeter-level positioning data for improved relative accuracy.

Centimeter-Level Positioning

D-RTK 2 Mobile Station fully supports GPS, GLONASS, Beidou, and GALILEO signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones to achieve centimeter-level positioning accuracy. The built-in high-gain antenna offers better signal reception from more satellites even when obstructions are present.

Stay Connected for Any Mission

D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be connected to the D-RTK 2 Mobile Station simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral. When used with the Matrice 300 RTK, it can be connected to multiple aircraft, making coordinated operations involving multiple drones a possibility and significantly improving efficiency.

* When used with Matrice 210 RTK V2, the D-RTK 2 Mobile Station can only be connected to one aircraft.

Durability You Can Trust

Featuring IP65 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.

A Comprehensive Solution

The D-RTK 2 Mobile Station is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2 and Matrice 300 RTK、DJI Inspire 3*. Which provides high precision positioning data within the cover range of the base station, making it the ideal tool for surveying, aerial inspections, agriculture, and other industrial applications.


* Once updated to v03.00.0013 or above using DJI Assistant 2, the D-RTK 2 Mobile Station For Matrice Series is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2, and Matrice 300 RTK, DJI Inspire 3 by switching to the corresponding modes.

GNSS Recevier

GNSS FrequencySimultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning AccuracySingle Point
Horizontal:1.5 m(RMS)
Vertical:3.0 m(RMS)
RTK
Horizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Cold Start<45 s
Hot Start<10 s
Recapture Time<1 s
Initialization Reliability>99.9%
Differential Data FormatRTCM 2.X/3.X

IMU

FeaturesBuilt-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level

Physical Characteristics

Dimensions(D-RTK 2 body with extension rod)168 mm×168 mm×1708 mm
IP RatingIP65

Communication and Data Storage

Data LinkOcuSync, Wi-Fi, LAN, 4G
Operating Frequency2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)
EIRPOcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
Communication DistanceOperating Mode 1/3

SRRC/NCC/FCC/MIC/KCC/CE: 2 km

(Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 4

Between the aircraft and mobile station:

NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km

Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 5

NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
(Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
Memory Capacity16 GB
Electrical Characteristics
Power Consumption12 W
Power Supply16.5 to 58.8VDC
BatteryType:Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH
Run TimeWB37 battery:>2 h
MG-12000P battery:>50 h

Operating Temperature

Operating Temperature4° to 131° F (-20° to 55° C)
